MSD Ignition Box Race Pro 600 Cdi 8-Channel Capacitive Discharge Ignition Designed For High Cylinder Pressure, High Horsepower Engines Running Ccoil-Near-Plug Ignition MSD Ignition

Part #: 8000

The PRO 600 has built-in protection for accidental reverse battery connection, over temperature protection, and LED diagnostics that can identify an issue with individual coils should a problem arise. A programmable power setting allows racers to switch between a user adjustable 250 to 400 millijoule output, or the industry-leading output of 680 millijoules via an activation wire or software - making the PRO 600 ideal for Drag Week style cars. Turn it down for the long haul, and then set it to kill mode at the strip.When you're making extreme cylinder pressure with boost or nitrous on an inductive coil-per-plug ignition, lack of spark energy means you're leaving horsepower on the table. To answer this need, the ignition experts at MSD developed the PRO 600 CDI to provide unrivaled spark energy and dependability.Introducing MSD's PRO 600 CDI 8-channel capacitive discharge ignition. Designed for coil-near-plug engine management systems such as Holley EFI, GM LS platforms, and most other EFI systems, the PRO 600 is also capable of easily converting any distributor type ignition into a coil-near-plug system.Pro Mod to Pro Street, or yanking a sled in the dirt with a pulling truck, if you need to light 8 coils without fail - the PRO 600 is the answer.Compatible with most EFI systems, including 5V or 12V driversMaximum Operating Voltage 22V3 Amps per 1,000 RPM @ 16 Volts and 600 mJApproved for NHRA Pro Mod ClassSpark duration of greater than 300 microsecondsDiagnostic LEDs help troubleshoot issues should they ariseContinuous 600 mJ operation without risk of failure from overheatingPlugin interface with MSD Power-Grid, Davis Profiler and OEM LS-style coil harnessEight outputs of up to 680 mJ of energy12 Volts minimum required for 600 mJ opereation6 Volts minimum required for starting and runningFits most coil-per-plug engines up to eight cylinders (Including four and six cylinders)Over 50 Kilovolts output voltage when used with MSD suggested coilsHigh-efficiency Alternating Current (AC) power delivery means less voltage draw from your battery or charging systemOn the fly Power Output selection wire, selectable between low power and high power operationDirect Plugin to Holley EFI systemsAll necessary wiring harnesses includedAdditional CAN based features when used with Holley EFI - See addendum belowReverse Battery ProtectionProtection against shorted or open coils, and over temperatureDetails:Connector Gender: FemaleConnector Quantity: 2.0Current Draw: 1000Emission Code: 4Height: 4.4Ignition Type: PerformanceLength: 13Maximum Rpm: 15,000 RPM / 10,000 RPM at Full PowerMounting Hardware Included: YesMounting Type: Surface MountPrimary Voltage: 515-520Spark Energy Mj Per Spark: 680Terminal Gender: MaleTerminal Quantity: 37.0Warranty: Manufacturer's Limited 1 Year Warranty

Features:

• Eight outputs of up to 680 mJ of energy

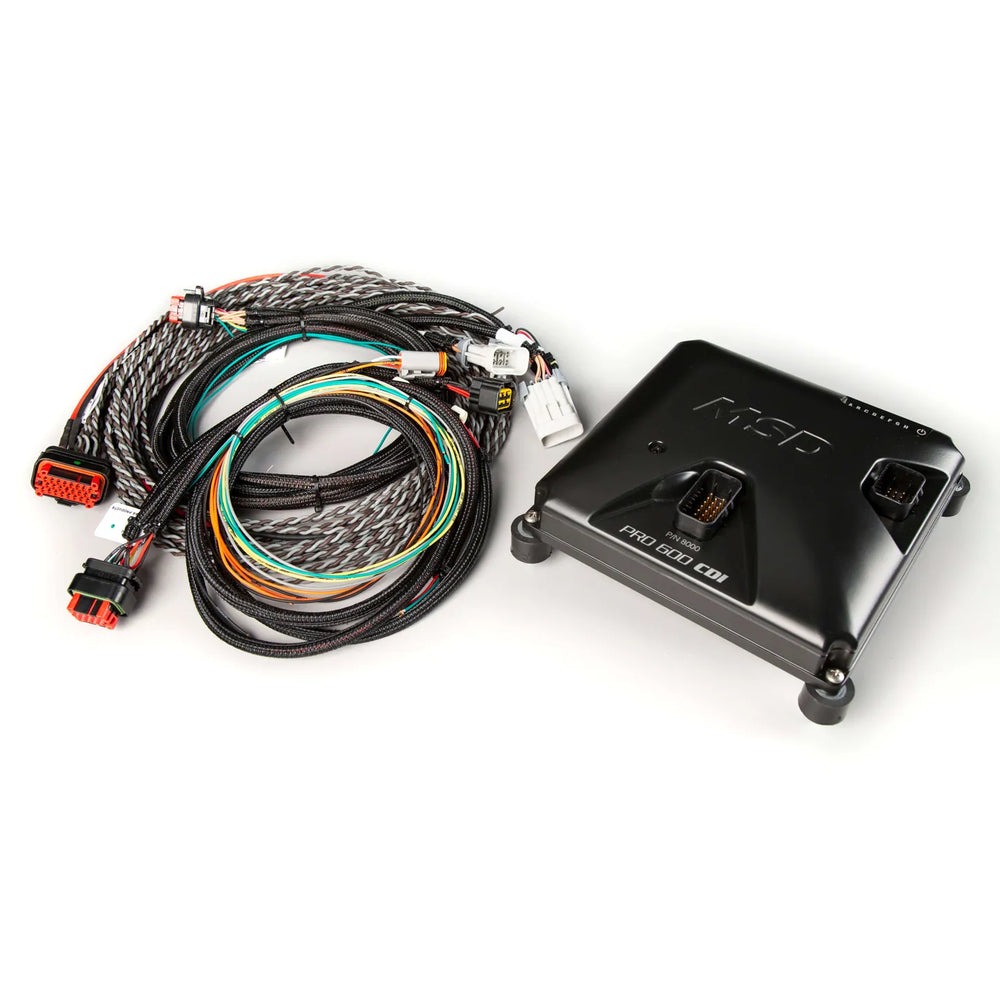

• All necessary wiring harnesses included
• Continuous 600 mJ operation without risk of failure from overheating
• High-efficiency Alternating Current (AC) power delivery means less voltage draw from your battery or charging system
• Over 50 Kilovolts output voltage when used with MSD suggested coils
• Spark duration of greater than 300 microseconds
• 6 Volts minimum required for starting and running
• 12 Volts minimum required for 600 mJ opereation
• Maximum Operating Voltage 22V
• Direct Plugin to Holley EFI systems
• Compatible with most EFI systems, including 5V or 12V drivers
• Plugin interface with MSD Power-Grid, Davis Profiler and OEM LS-style coil harness
• Reverse Battery Protection
• Protection against shorted or open coils, and over temperature
• Diagnostic LEDs help troubleshoot issues should they arise
• On the fly Power Output selection wire, selectable between low power and high power operation
• Fits most coil-per-plug engines up to eight cylinders (Including four and six cylinders)
• Additional CAN based features when used with Holley EFI - See addendum below
• Approved for NHRA Pro Mod Class

8-Channel Capacitive Discharge Ignition Designed for High Cylinder Pressure, High Horsepower Engines Running Ccoil-Near-Plug Ignition.
