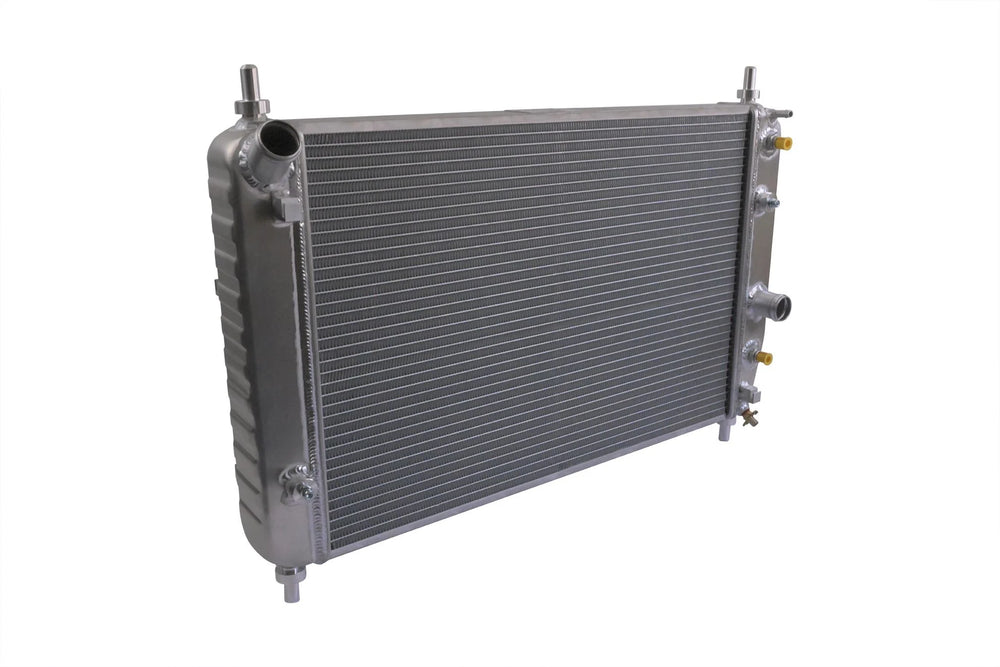

Pro Series Radiator with Oil Cooler, Black Ice

This premium upgrade features a dual-row core with two 1-inch wide cooling tubes, providing a 25% increase in cooling capacity. Crafted entirely from aluminum, this radiator boasts press-formed end tanks that are fully welded to the core, eliminating plastic components, gaskets, or epoxy for maximum durability. The core itself is constructed using a controlled atmosphere furnace brazing process, complemented by Tig-welded end tanks. It also includes a built-in 7-plate engine and transmission oil cooler. Designed as a direct-fit upgrade, this radiator requires no modifications to your vehicle's existing cooling system components, making installation straightforward. It utilizes factory-sized 1.38-inch inlet and outlet connections to seamlessly integrate with stock hoses. The radiator's 2-1/4-inch thick core increases coolant capacity by one gallon without causing fitment issues, and features serpentine cooling fins for optimal airflow. This DeWitts radiator is specifically engineered for 2006 to 2013 Corvette C6 Z06 models equipped with a manual transmission and specifically *without* the Z07 package. It notably excludes 2012 Corvette Z06 models equipped with the Z07 option. The radiator is finished with a Black Ice two-part epoxy coating, offering a semi-gloss black appearance. It is assembled in the U.S.A. and comes with a limited lifetime warranty. Installation is estimated to take approximately 2 hours and requires light to moderate mechanical skill.
