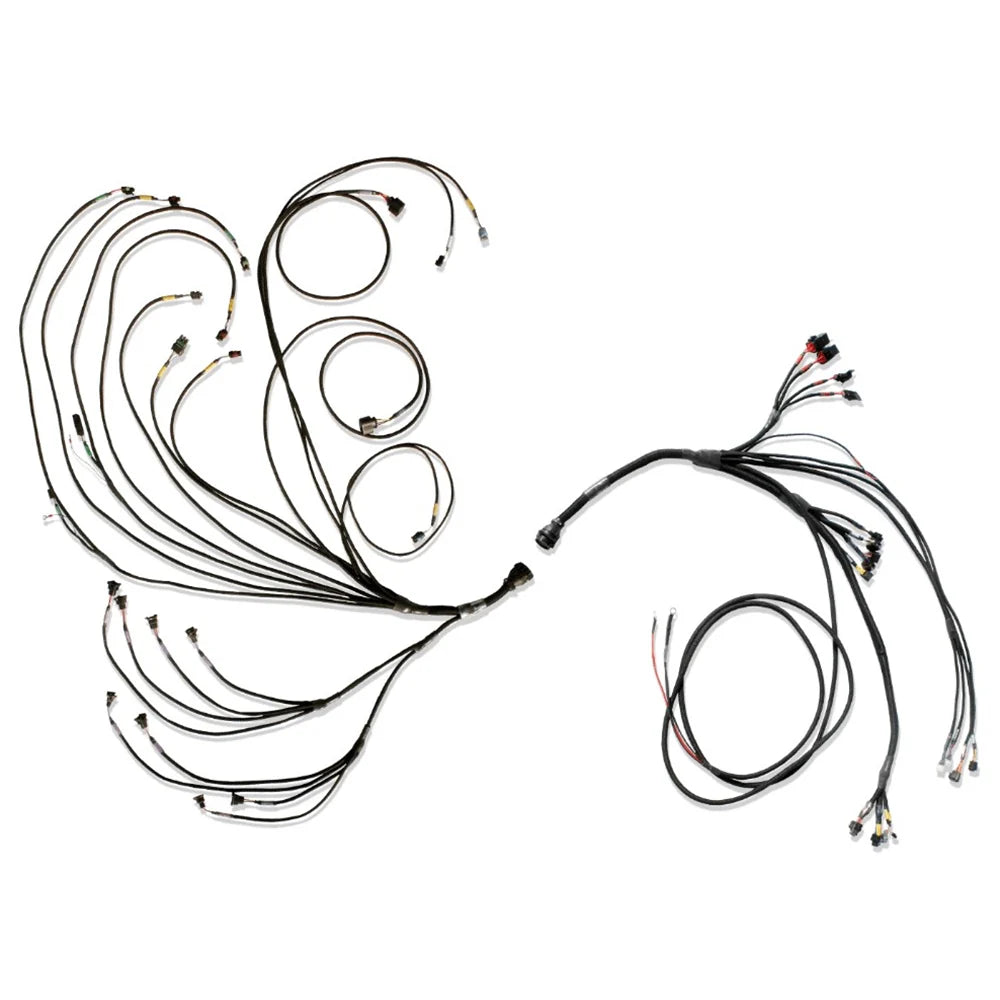

PRO550 Ford V8 Complete Harness

This harness links a FuelTech FT550 or FT550LITE ECU to a V8 Ford racing engine. It's pre-terminated for 8 EV1 injectors and includes relays/fuses for battery and ignition. Features a 37-pin firewall connector for easy installation and modular construction for adding individual coils. Most engine sensors are pre-wired: TPS, hall/VR crank trigger, hall/VR cam sync, fuel pressure, oil pressure, wastegate pressure, turbo back pressure, coolant/intake air temperature, and driveshaft. Pre-wired for two EGT-4 CAN and two nano wideband O2 conditioners/sensors. Supports distributor-type ignition directly or coil-per-cylinder with auxiliary harnesses. Includes connectors for 5 additional inputs and 2 additional outputs. Harness insulation is heat, moisture, and oil resistant.
