Progressive Nitrous Controller

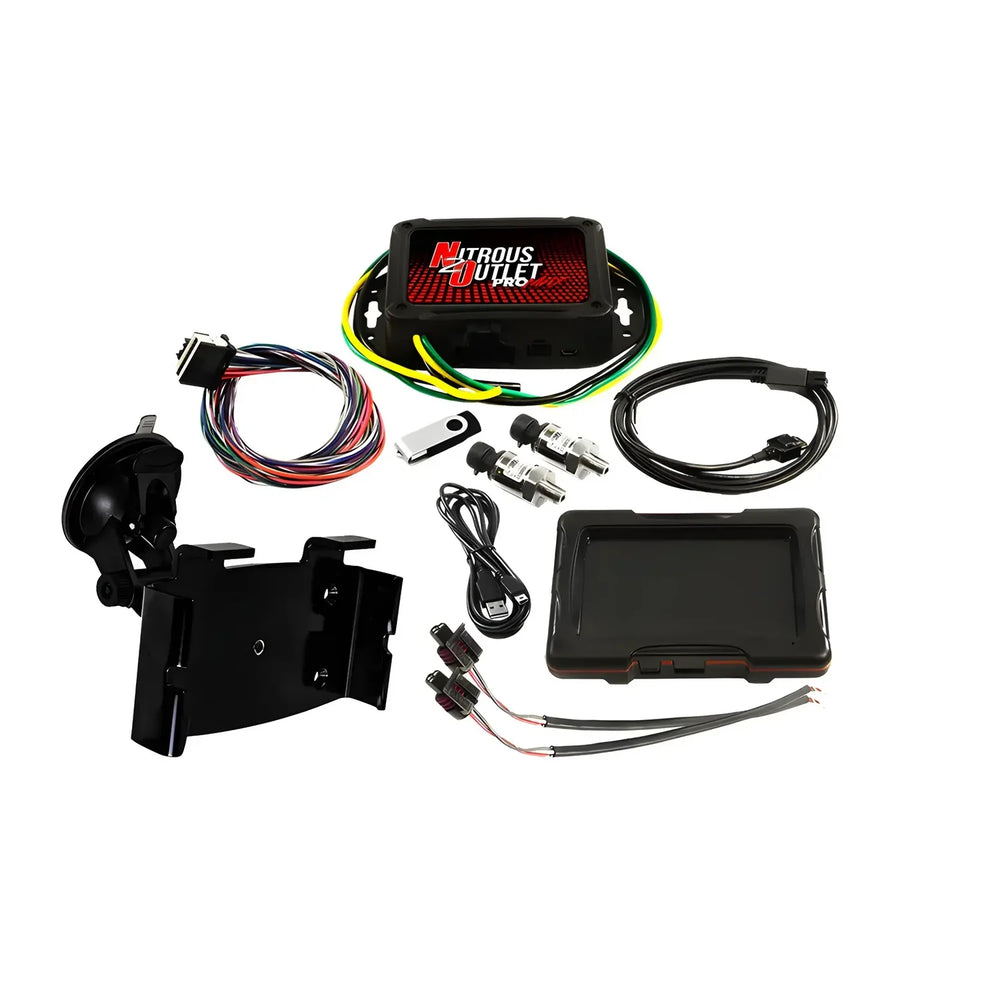

The Nitrous Outlet ProMax Dual Channel Progressive Controller Kit is a top-tier solution for advanced nitrous oxide system management. It integrates the activation and safety functions of other controllers while adding significant tuning capabilities for enhanced performance and traction control. This kit allows for the creation of multi-stage progressive nitrous ramps based on parameters such as engine RPM, time, or boost references, and it supports integration with wideband O2 sensor inputs for precise fuel control. This comprehensive package includes the ProMax Progressive Controller itself, a 20-pin connector, a flash drive, a USB cable, an LCD screen with its cable, and both nitrous and fuel pressure sensors. The controller features two built-in 70-amp solenoid drivers capable of controlling two independent stages or one stage with closed-loop fuel control based on wideband input. Its progressive stage controls offer an adjustable frequency output of 10-30 Hz for precise solenoid operation. The system can be configured to vary solenoid duty cycle based on time, throttle percentage (TPS), engine RPM, vehicle speed, or manifold absolute pressure (MAP). Additional features include a resume and restart option for interrupted ramps, a built-in RPM window switch with gear lockout, TPS or WOT switch activation, and two ignition retard outputs. The ProMax controller boasts updateable firmware and datalogging capabilities. Its 4.3-inch full touch screen display provides real-time data visualization, and the controller can store up to five different tuneups internally. Programming can be done via a PC/laptop or the optional display.
