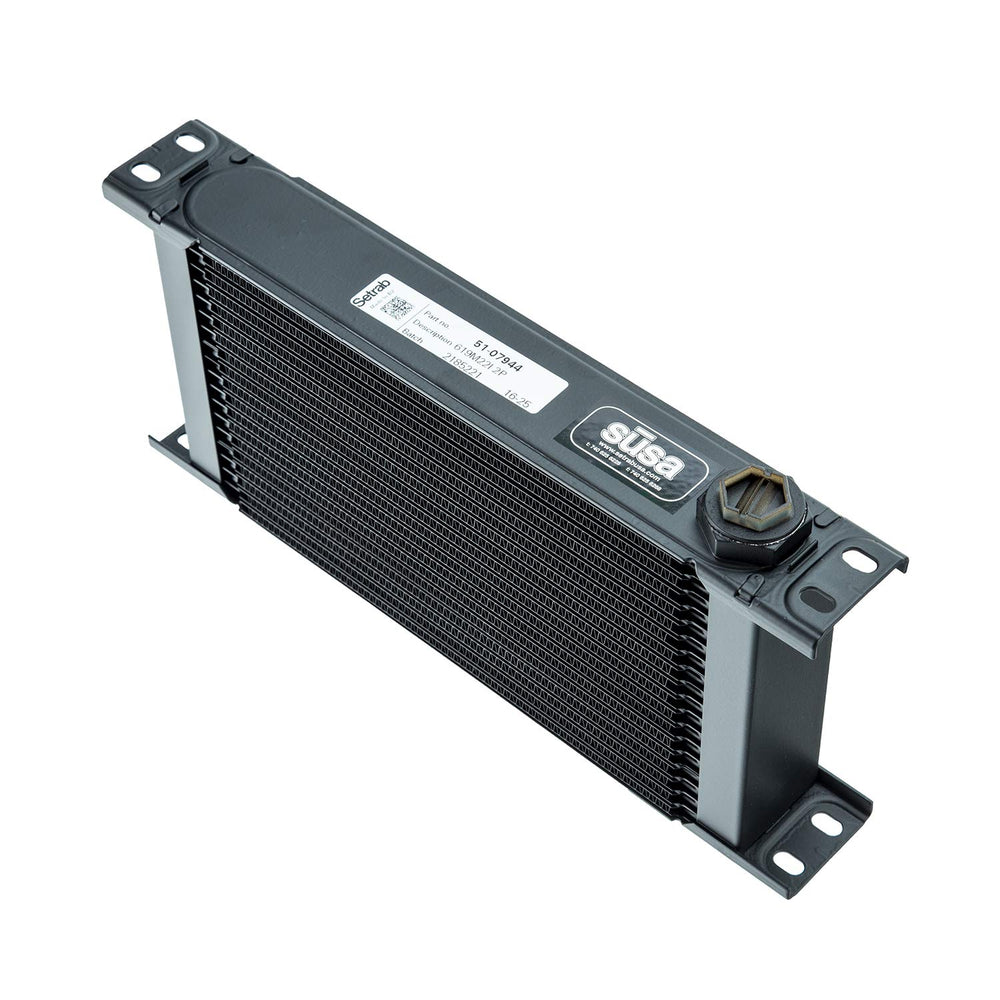

ProLine M22 Female Port Oil Cooler

It operates within a working pressure range of 0-10 bar dynamically and can withstand up to 12 bar maximum pressure. The cooler is rated for pressure pulsation endurance and has a burst pressure of 37 bar, ensuring robustness in operation. This ProLine cooler features Setrab's smart adapter system, with low-profile M22x1.5 female ports that are adaptable to any common size using SUSA ProLine adapter fittings. It is suitable for use with oil and water containing a minimum of 40% glycol or corrosion inhibitors. The working temperature range is -40 to 150 °C, though temperatures above 120 °C require evaluation of pressure pulsations. The STD cooler series is available in numerous sizes, with this particular unit being part of the 6-Series, featuring 19 rows and two passes. Its corrosion endurance is rated for 20 days according to SWAAT G 85-94 A3 for painted coolers, and it maintains inner cleanliness to ISO 4406 16/14 standards. The maximum connection tightening torque is 40 Nm.
