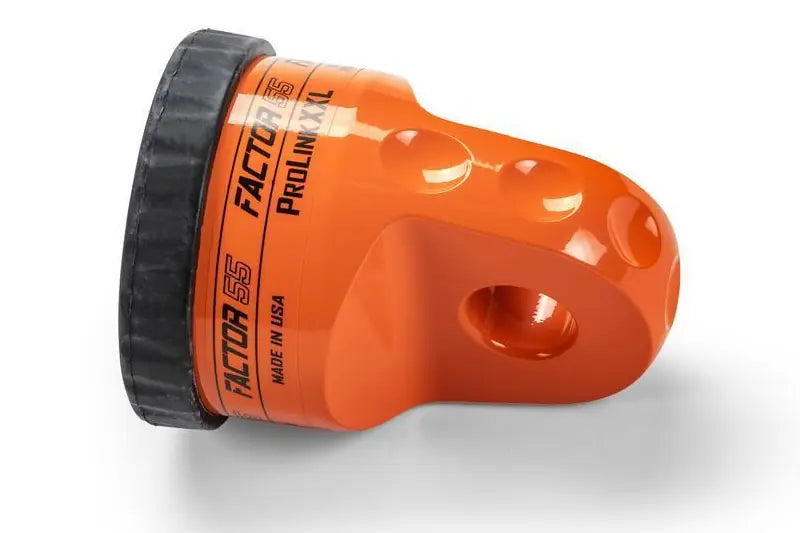

ProLink XXL Heavy Duty Winch Shackle Mount Orange Factor 55

Part #: 00210-07

The ProLink is Factor 55's original shackle mount. Trusted and used by first responders worldwide, ProLink is easy to install and allows winch owners the ability to replace the vehicle's winch hook with a stronger shackle/D-Ring mount.The Factor 55 ProLink XXL is the largest and strongest ProLink winch shackle mount in production. The ProLink XXL provides winch owners with a means to replace the conventional winch hook with a safer and stronger screw pin shackle/D-ring. Originally designed for military 24,000 pound winch applications, the ProLink XXL is now available to the general public. Engineered and machined in the USA from lightweight billet 6061 aluminum, ProLink doesn't require splicing and is compatible with steel or synthetic ropes and both hawse and roller fairleads.The cable eye is retained in the ProLink by an ultra-strong aerospace-grade titanium double-shear pin and internal snap ring, and is easily installed in minutes. The EPDM rubber guards protects alloy fairleads and is securely attached to the ProLink with four barbed tips and prevents rattling.This product is compatible with Closed System Winching, a technique that uses rigging comprised entirely of closed-link hardware. With Closed System Winching you get the extra security and confidence needed to tackle the most demanding winch recoveries.ProLink XXL Heavy Duty Winch Shackle Mount Orange.750 inch diameter Titanium double-shear pin and internal snap ring for an ultra-secure connectionEPDM rubber guards are attached with four barbed tips and protects fairleads, cushions line stowage, and prevents rattlingPrecision machined from 6000 series billet Kaiser AluminumLarger size for large overland and military-style vehiclesFits all steel cables and synthetic ropes up to 1/2 inch diameterThe rope eye is retained in the ProLink with a 3/4 inch-diameter grade 6AI-4V grade VWorks with 7/8 inch shackles and 3/4 inch shacklesMax load rating: 24,000 lbs., Ultimate failure of greater than 63,000lbsEngineered, Tested, and Made in USA. Patent pendingWeight: 40 oz

Features:

• Fits all steel cables and synthetic ropes up to 1/2" diameter
• Billet construction ? precision machined from 6061-T6 Aluminum round bar
• 5? tall and 4? in diameter
• EPDM rubber guard protects hawse and roller fairleads
• Engineered, tested, and made in USA ? patent pending
• Made in the USA
• Limited 1 Year Warranty

The ProLink XXL eliminates the conventional winch hook and provides a precision shackle mounting hole with a massive 1.2" thick mounting tab
