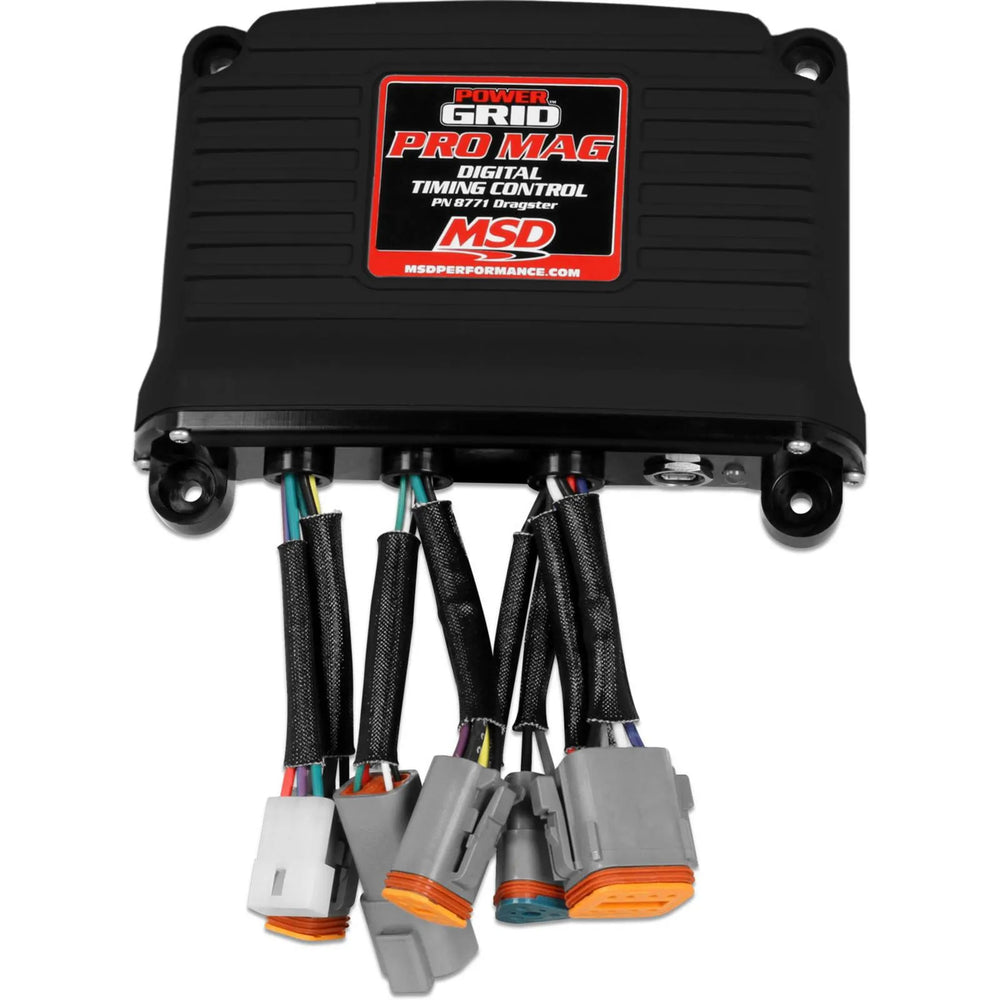

MSD Dual Channel Power Grid Timing Controller Top Fuel Dragsters And Funny Cars Use With MSD Pro Mag 44 MSD Ignition
SKU: M00T 8771
Advanced — 4+ hours
Overview
Show original supplier description
Part #: 8771
The Dual Channel Power Grid incorporates a high-speed 32-bit microprocessor and PC software, called MSD View via a USB BluetoothTM wireless. It includes a high-speed data acquisition recording engine RPM, timing, dual Tach signal, launch/WOT with sample rates of 100 samples per second or 10 milliseconds. The MSD View software will program timing curves with up to 30 points at 1.0 increments down to 0.01 second intervals. Multiple timing curves can be overlayed to choose the right one at the last minute. Other unique programs include a throttle lift timing retard, throttle inhibit timing retard, and an auto pickup signal selector. This means that in the case of a crank trigger pickup failure, it will trigger the dead channel running magnetos seamlessly. The MSD View software includes a virtual dashboard that can be configured to display engine RPM, Timing, Timing Retard, WOT, Timing Reset, Crank Trigger inputs, and Output Triggers. Includes a CAN-Bus connection sending the recording to the RacePak data logger.
Features:
- Mandated in NHRA/IHRA Top Fuel Dragster and Funny Car
- Provides a programmable time-based timing curve with up to 30 points
- Stores different timing maps
- Easily transfer or change timing maps while in the staging lanes
Top Fuel Dragsters and Funny Cars - Use With MSD Pro Mag 44
Product descriptions are provided by our supplier partners and may not always be perfectly accurate. Not sure this fits? or call (760) 282-4645 and we’ll verify before you order.
Fitment
Fitment Guaranteed
Don’t gamble
on fit.
Log your build in the MOTORMIA app and we’ll guarantee this part fits your exact setup — or your money back, return shipping covered.
Available on iOS & Android
Specifications
| Brand | MSD |
| Part Number | M00T 8771 |
