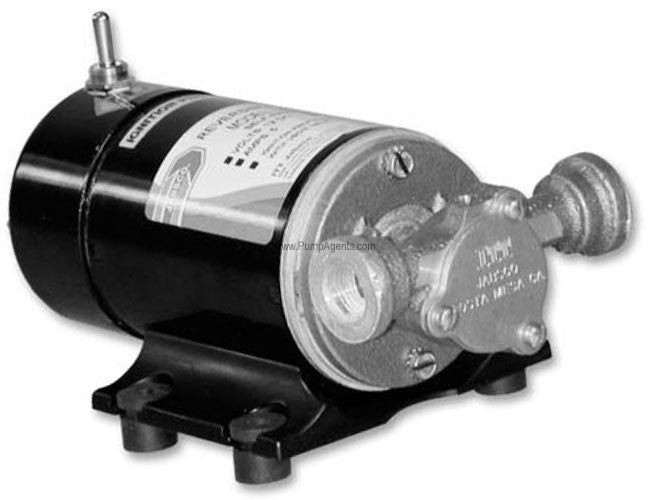

PUMP REVERSIBLE MINI PUPPY

Jabsco catalog # 18620-0003, Reversible Pump and Motor unit. Bronze Construction, with a Nitrile Impeller and Lip Type Seal. Pump is Close Coupled to a 12 Volt DC Motor. Ports are 3/4 Inch Garden Hose External. The Jabsco 18620-0003 is a bronze Flexible Impeller pump with a Nitrile Impeller, Lip Type seal, 3/4 Inch Garden Hose External Ports, coupled to a 12 Volt DC Motor. The motor on this pump is a Reversible Permanent Magnet Type with Integral Reversing Switch and Fuse, that draws 7 amps and requires a 10 amp fuse. With a wet impeller, pump will produce a suction lift of about 3 to 4 feet (0.9 to 1.2m) and a lift of about 10 feet (3m) when primed. Be sure suction lines are airtight or pump will not self-prime. This flexible impeller pump must NOT be run dry, as the pumped liquid is the lubricant for the impeller. Observe the outlet and shut off pump as soon as liquid stops flowing. The pump cannot run against a closed outlet such as encountered when using a garden hose type shut-off nozzle. Temperature of pumped liquid may be in the range of 45 degrees - 160 degrees F (10 degrees - 70 degrees C). Pressure for normal operation should not exceed 40 feet of head (17.4 psi). Do not pump gasoline, solvents, thinners or other flammable liquids. Impeller : Catalog # 14750-0003, Impeller, Nitrile. Use for circulating and draining bait tank, engine oil changing or general pumping requirements. The pump must be mounted in a dry location the motor is not waterproof and must not be submerged. Selection of a cool location will generally extend pump motor life. The unit can be mounted in any desired position. It is best to mount so that water dripping from loose port connection will not wet the motor. The pump head may be mounted at 90 degree increments on the motor to accommodate plumbing connections as needed. Pumps have external hose threads and internal 3/8 Inch pipe threads. Use hose that does not kink when bent or collapse due to the suction of the pump. Arrange hoses to trap liquid in pump body to wet the impeller. Wetting the impeller aids in priming and extends impeller life. All hoses must have airtight connections.
