PureFlow AirDog II-5G 19-20 RAM 6.7L Cummins DF-100-5G Fuel Air Separation System

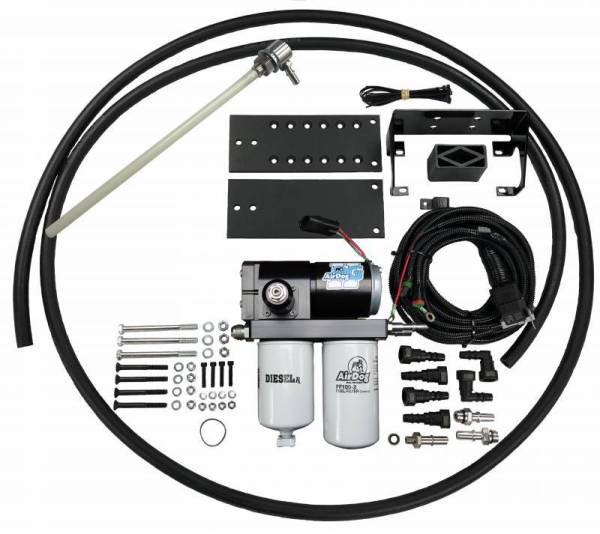

This is the AirDog II-5G DF-100 fuel system designed for 2019-2020 RAM trucks with the 6.7 Cummins engine. It mounts to the frame rail using a supplied sandwich plate mounting system. A Fuel Module Upgrade Kit is installed in the factory fuel basket to pull fuel through a factory-style 1/2" bulkhead fitting, bypassing the factory in-tank lift pump. The pressure side connects directly into the side of the factory fuel filter housing. The AirDog Air/Vapor return is sent back to the tank through the factory 3/8” suction line once the module is modified. This is a 100GPH (Gallon Per Hour) lift pump system for stock fuel trucks.
