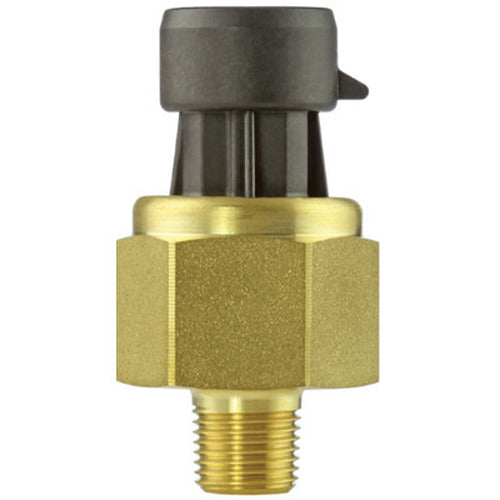

PX3 Series 150PSIG Sealed Gauge Pressure Transducer

The Honeywell PX3AN1BH150PSAAX is a heavy-duty pressure transducer engineered for robust performance in challenging industrial and transportation applications. It employs advanced piezoresistive sensing technology coupled with ASIC (Application Specific Integrated Circuit) signal conditioning, all housed within a durable brass construction for longevity. This transducer is capable of measuring a wide pressure range, from 15psi up to 700psi, with a sealed gauge pressure type. It offers an analog output and is calibrated and temperature compensated to ensure accuracy across its operating temperature range of -40°C to +125°C. The PX3AN1BH150PSAAX also boasts an IP67 ingress protection rating, making it suitable for environments where dust and water may be present. Its 1/4 in - 18 NPT male port size ensures compatibility with standard fittings. Common applications for the PX3 series include monitoring air compressor system pressure, refrigerant pressure in HVAC/R systems, and air or hydraulic oil pressure in transportation settings. It is compliant with global standards including RoHS, REACH, CE, and UKCA.
