QA1 63-72 Chevrolet C10 Rear Suspension Conversion System - Medium - Double Adjustable (200lbs/in)

Part #: R210-200

QA1's C10 bolt-on rear suspension system is designed to convert trucks originally equipped with a coil-spring rear suspension to coil-overs. This system offers up to 6" of total drop and integrates adjustability into multiple areas so you can truly fine-tune the geometry to create the perfect performance after lowering. , , By converting the coil-spring rear suspension to adjustable coil-overs, the ride height for each corner can be altered for that perfect stance. From there, the tubular steel truck arms feature an integrated pinion angle adjustment, eliminating the need for angled shims and allowing the wheelbase to be set to exact specifications. The adjustable panhard bar keeps the rear centered for more predictable cornering, and the multiple mounting locations correct roll center geometry based on the amount of drop. The coil-overs are also relocated to the outside of the frame rail, closer to the wheel, for better cornering stability and allowing room for popular aftermarket rear-mounted fuel tanks. In addition to being easily bolted on, the entire rear system can be installed without needing to remove the bed of the truck.

Features:

• QA1 uniquely engineered to enhance the performance of your vehicle
• Ride height adjustability
• Adjustable shock valving options for all driving styles
• Easy bolt-in install
• Best-in-class warranty
• Made in the USA

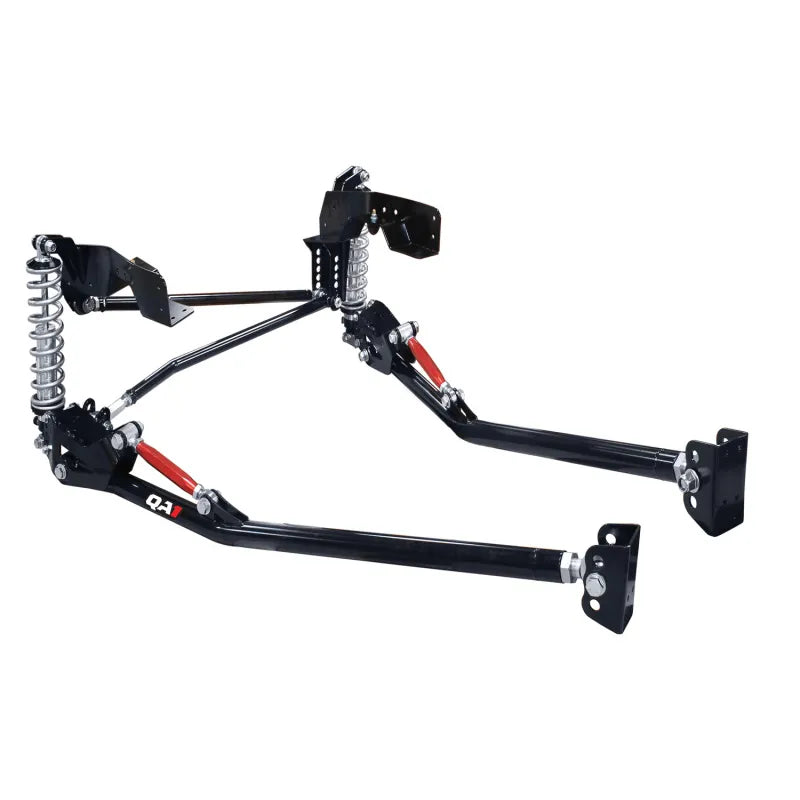

Rear suspension system with up to 6" drop for 63-72 C10 trucks. Includes adjustable tubular truck arms, double adjustable shocks, high travel springs, C-notch bracket, panhard bar, and brace bar.
