QA1 MCOM-T Series Bearing - 18mm Bore - Heat Treated Chrome Plated Chromoly Steel w/PTFE

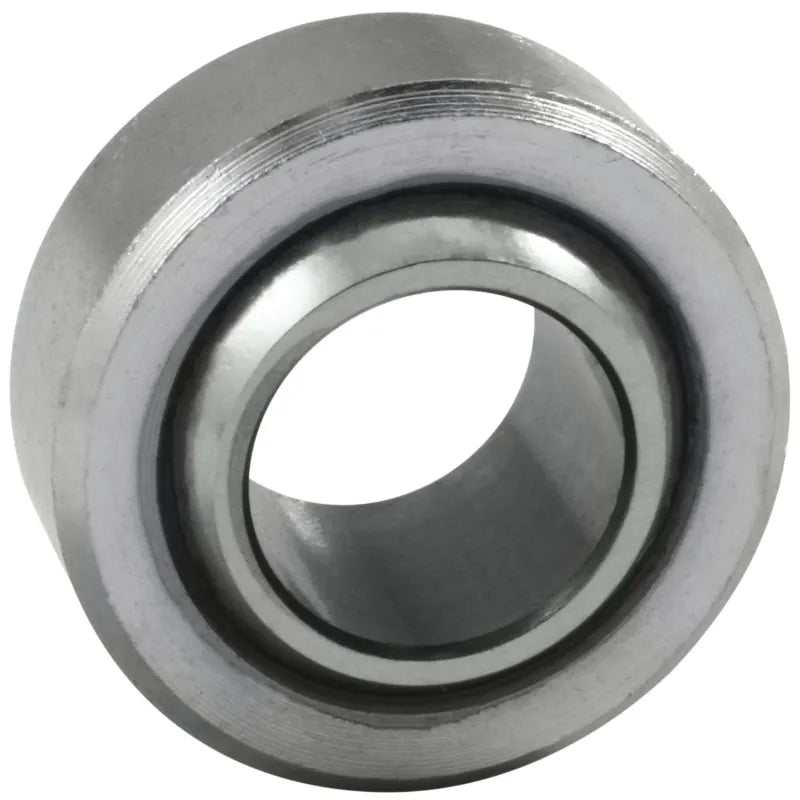

The QA1 MCOM18T is a metric spherical bearing from the MCOM-T PTFE Lined Spherical Bearings product line. It features a 52100 bearing steel ball that is heat treated, precision ground, and hard chrome plated. The bearing also includes a self-lubricating PTFE liner and an outer race made from heat-treated, chromoly steel with a protective coating for corrosion resistance.

This bearing has a 42mm receiver race diameter, a 16.50mm race width, and a 23mm inner ball width. The inner ball diameter is 18mm, and the rod end ball diameter is 31.75mm, with a 1mm chamfer reference. It offers a 15-degree rod end misalignment angle and has an ultimate static radial load capacity of 48,719 lbs. The MCOM18T is sold individually.
