Radiator

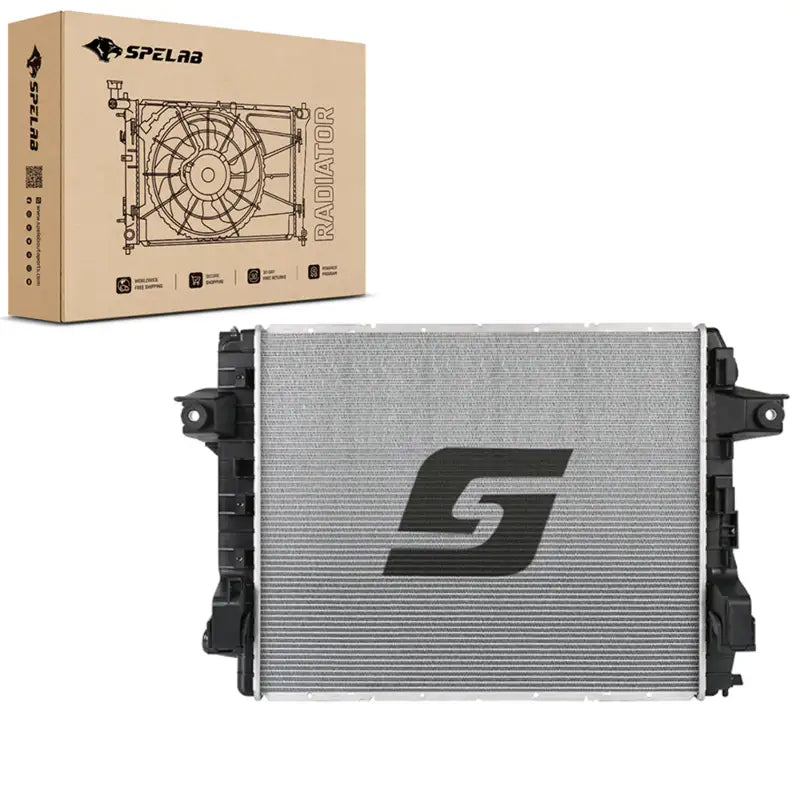

The SPELAB Cool Radiator #CS08096 is engineered as an upgrade for 2013-2018 Dodge Ram 2500 and 3500 models equipped with the 6.7L Diesel engine. Constructed with an aluminum core and plastic tanks, this radiator features a high-efficiency core with more fins per inch and heavy-duty tubes to maximize cooling potential. Internal reinforcements are achieved through special aluminum brazing techniques, strengthening the end tubes at the vulnerable outside corners. A proprietary rubber gasket is utilized to accommodate expansion, contraction, and flex, addressing a common failure point in OE designs. The revised end tanks include reinforcement ribs and a fiber reinforcement in the plastic mix for increased longevity. Key specifications include a core size of 26-5/8" length, 1-5/8" thickness, and 21-11/16" width, with a cross-flow direction. It also features an integrated oil cooler with high-efficiency plate-type construction. The inlet and outlet fittings are both 22-1/16" long and 2-5/16" wide, with the bottom hose fitting on the right and the top hose fitting on the left. The integrated mounting points have been strengthened for secure and durable installation. This radiator is specifically designed for the 2013-2018 Dodge Ram 2500 and 3500 with the 6.7L Diesel Engine.
