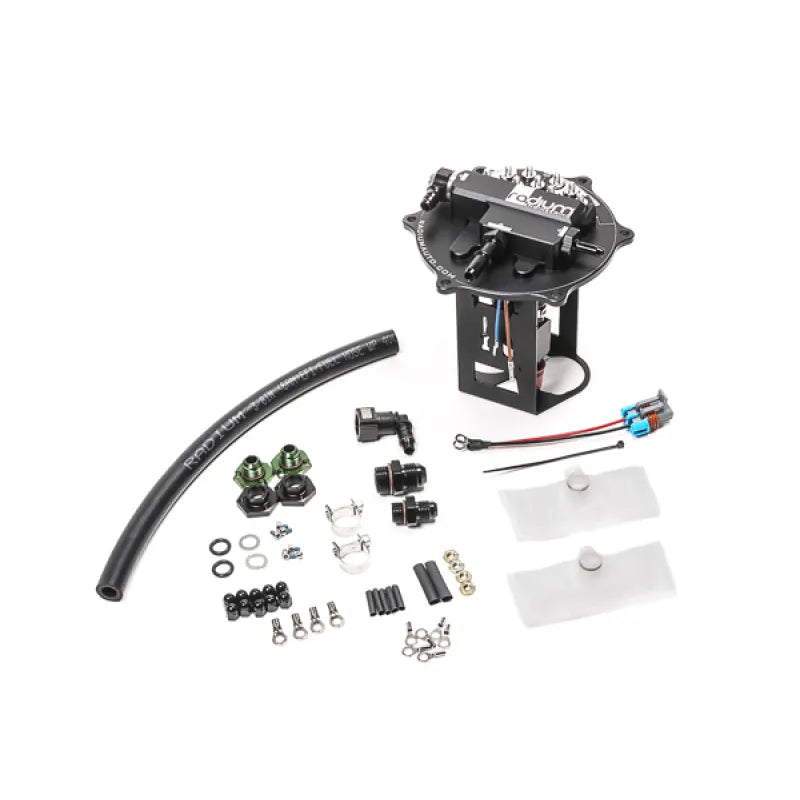

Radium Engineering EVO 7/8/9 Fuel Pump Hanger For Walbro F90000267/274/285 - Pumps Not Included

The Radium Engineering Evo 8/9 fuel pump hanger allows the use of 1 or 2 pumps in the stock fuel tank. The machined assembly drops-in the factory fuel tank replacing the OEM hold-down flange. A single 8AN male pump feed port and 6AN male return port simplify aftermarket -AN hose plumbing. Adapter fittings are also included to reuse the OEM fuel lines (if needed). The custom designed stainless electrical studs handle high current demand. These serviceable connections are properly sealed and impervious to all standard and exotic fuels. The low profile design keeps all wiring tucked nicely underneath the OEM cover plate. Nylon acorn nuts prevent accidental short circuits. High quality in-tank wiring is insulated with chemically resistant PTFE. Addresses the OEM EVO 8-9 fuel pump hanger's restrictive return port and Venturi jet pump. Includes a Venturi jet pump with a new integrated pressure-relief valve to minimize back pressure. All returning fuel from the pressure regulator and crossover hose exit the jet pump keeping the OEM gas tank baffle full for starvation protection. Single pump applications can reuse the OEM fuel pump controller wiring, but upgrading is recommended. IMPORTANT: This fuel hanger eliminates the fine-micron in-tank fuel filter of the OEM fuel pump hanger. It is highly recommended to use an aftermarket fine-micron (less than 10 micron) fuel filter on the feed line. The Radium fuel hanger plumbing kit is a good option.
