Radium Engineering Nissan R35 GT-R Fuel Hanger Pumps Not Included

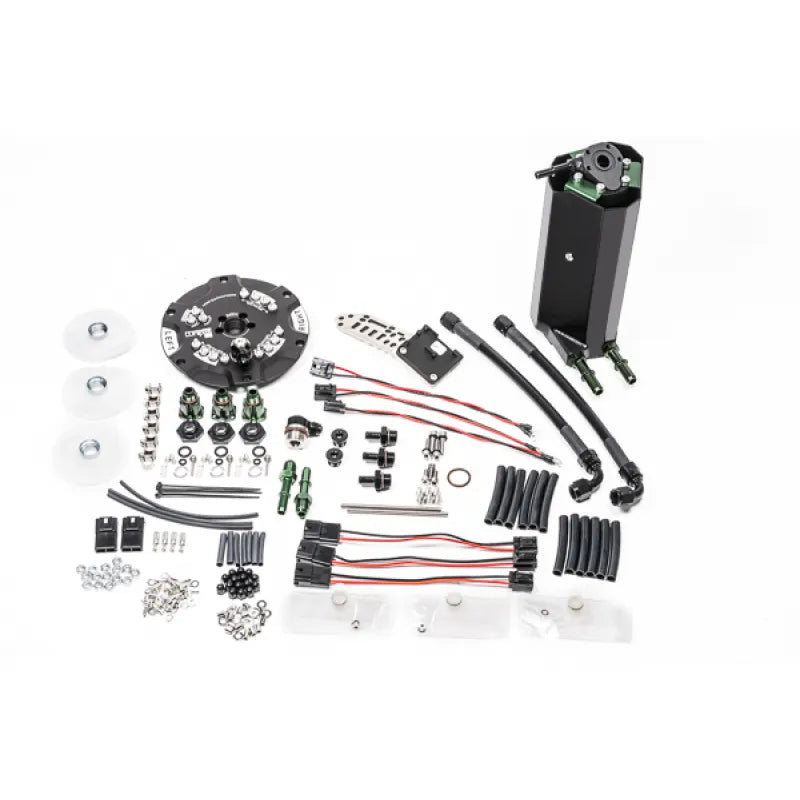

The Radium Engineering Fuel Hanger (MPN: 20-0572) is a direct OEM replacement for the 2009-2024 Nissan GT-R. This in-tank fuel pump hanger allows for the installation of one, two, or three 39mm diameter aftermarket fuel pumps (brushed or brushless) to enhance fuel delivery to the engine. No permanent vehicle modifications are required for installation.

The hanger features an aluminum collector box that prevents fuel starvation during fuel starvation during aggressive driving. It incorporates three 355LPH one-way fill valves, totaling 1,065 LPH, to keep the collector box full. The fuel pump outlet port is -10AN ORB female threaded and includes a 6AN male adapter, while the return port is -8AN ORB female threaded and includes a 6AN male adapter.

The system is compatible with various fuels, including methanol, ethanol, and E85. It utilizes custom-designed stainless electrical studs to handle high current demands, which are hermetically sealed and resistant to various fuels. Non-conductive anodized aluminum acorn nuts prevent accidental short-circuiting. Electrical hardware for the fuel pump(s) and OEM sensors is included, and the in-tank wiring is insulated with chemically resistant ETFE. The factory temperature and fuel level sensors are reused.
