Rear Brake Rotor

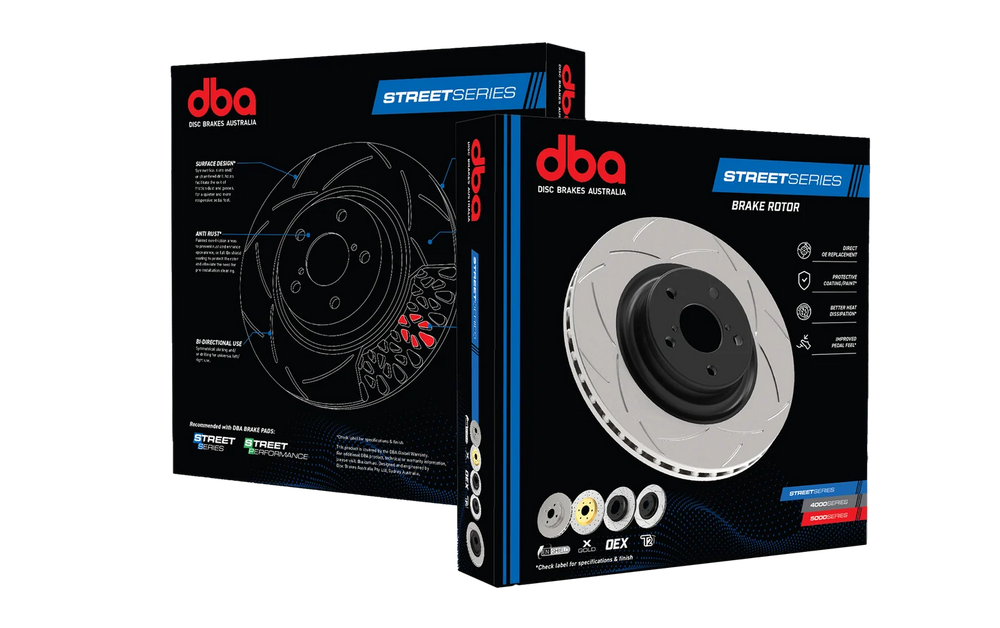

The Stillen DBA563 is a rear brake rotor engineered by DBA Brakes for drivers seeking enhanced performance braking capabilities that exceed original equipment standards. These direct-replacement rotors are constructed from high-carbon alloyed iron, a material chosen for its resilience under demanding conditions. To ensure optimal durability and heat management, the rotors undergo Thermal Stability Profiling (TSP), a process that allows the metallurgy to withstand significant stress and heat generated during intense braking applications. DBA's innovative design is further exemplified by the patented Kangaroo Paw ventilation system. This unique feature incorporates 144 diamond and teardrop-shaped pillars, which, compared to traditional straight vane designs, provide up to a 30% increase in surface area and a 20% improvement in cooling efficiency. This enhanced cooling is critical for maintaining consistent braking performance and preventing premature wear under heavy use. The DBA563 is a solid, smooth surface rotor with a 269 mm outside diameter, 56 mm overall height, and 55 mm center hole diameter. It has a nominal and discard thickness of 9 mm and features 5 lug holes. This brake rotor is compatible with various models, including the 2003-2008 Pontiac Vibe (Rear Disc), 2005-2010 Scion tC, 2000-2005 Toyota Celica (GTS), 2005-2006 Toyota Corolla (XRS, 6 Speed; Rear Disc), and 2003-2008 Toyota Matrix (Rear Disc).
