Rear Brake Rotor

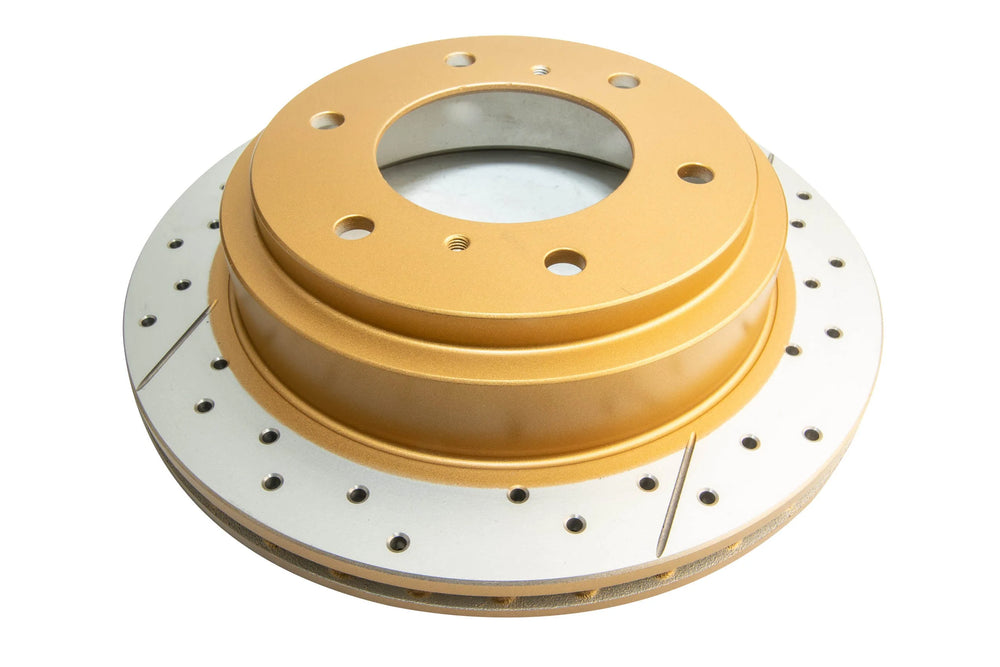

The Stillen DBA661X is a rear brake rotor from the DBA Street Series, engineered for drivers seeking enhanced braking performance beyond standard OE levels. Constructed from high carbon alloyed iron, these rotors are put through DBA's Thermal Stability Profiling (TSP) process, ensuring they can consistently withstand the elevated stress and heat generated during demanding braking situations. This rotor incorporates DBA's patented Kangaroo Paw ventilation system, featuring 144 diamond and teardrop-shaped pillars. This unique design provides up to a 30% increase in surface area and a 20% improvement in cooling efficiency compared to traditional straight vane designs. The cross-drilled and slotted surface further aids in heat dissipation and gas evacuation, contributing to improved stopping power and rotor longevity. Key specifications include an outside diameter of 300 mm, a nominal thickness of 22 mm, and 6 lug holes. The rotor is vented and has a center hole diameter of 94 mm. It is designed as a direct replacement for the rear brake rotor on the 2000-2006 Mitsubishi Montero.
