Stand Alone Solid State Relay Clean Up Your Wiring With An MSD Solid State Relay Block MSD Ignition

Part #: 7564

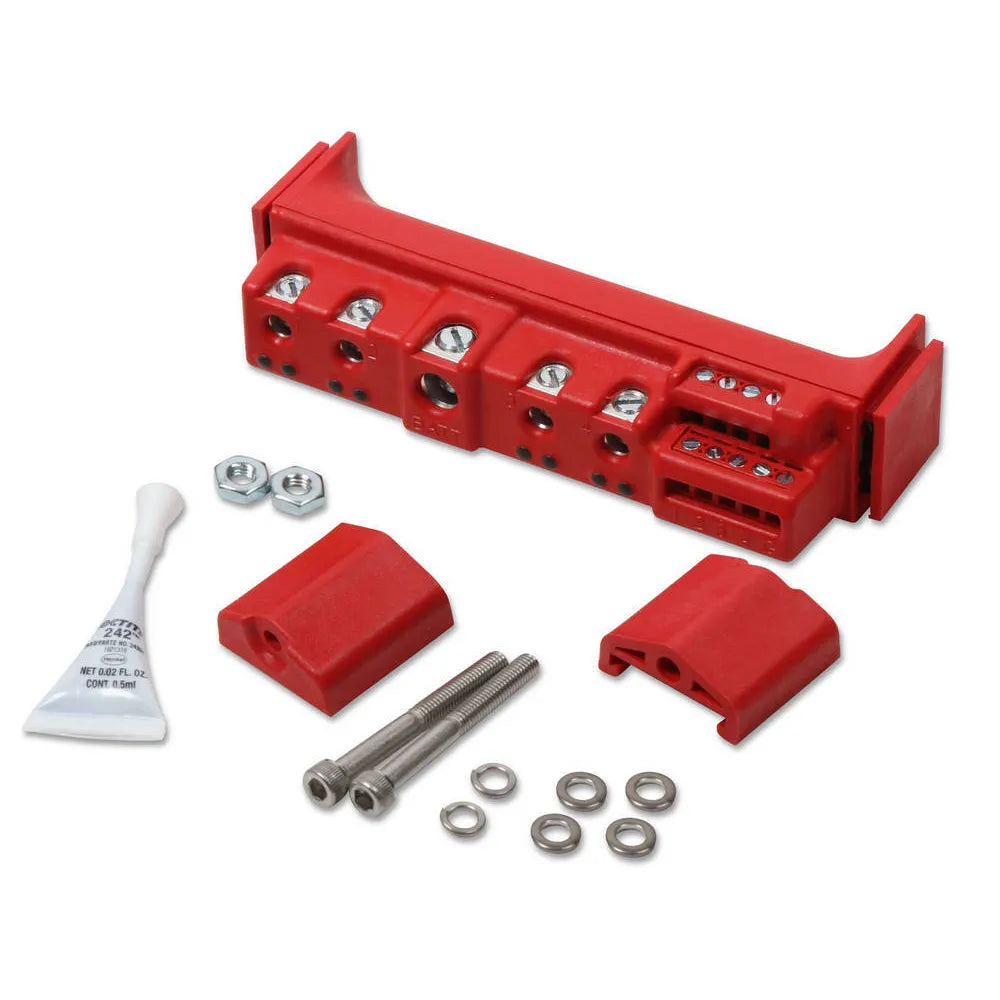

LED status indicators ensure proper wiring and operation of each channel. Should a problem arise, the relay block has built-in automatic over-temp, short circuit and overload protection. The 7564 can easily be mounted using the supplied hardware and mounting tabs that can be rotated 90 Degree to accommodate various mounting locations. It's compact and clean design will make your wiring project a breeze.Clean up your wiring with an MSD Solid State Relay Block. This module takes the place of 4 standard relays and eliminates unsightly wiring. 4 independent channels can be activated using either power or ground. Each channel is capable of handling 50 Amps for up to 8 seconds or 20 Amps of continuous current. With 4 channels providing up to 200 Amps of momentary or 80 Amps constant combined power, you can easily control electric fans, water pumps, nitrous solenoids, auxiliary lighting and any other electrical accessories that would normally require a relay.4 Channels, Up to 20 Amps continuous each and 50 Amps for 8 secondsClean, easy install with minimum wiringMultiple mounting optionsOver temp, short circuit and overload protectionChannels can be run in parallel for devices requiring more than the single-channel ratingActivate with power or groundDiagnostic LED (TM)sDetails:Channel Count: 4.0Emission Code: 5Warranty: Manufacturer's Limited 1 Year Warranty

Features:

• 4 Channels, Up to 20 Amps continuous each and 50 Amps for 8 seconds
• Clean, easy install with minimum wiring
• Over temp, short circuit and overload protection
• Diagnostic LED's
• Multiple mounting options
• Activate with power or ground
• Channels can be run in parallel for devices requiring more than the single-channel rating

Clean up your wiring with an MSD Solid State Relay Block.
