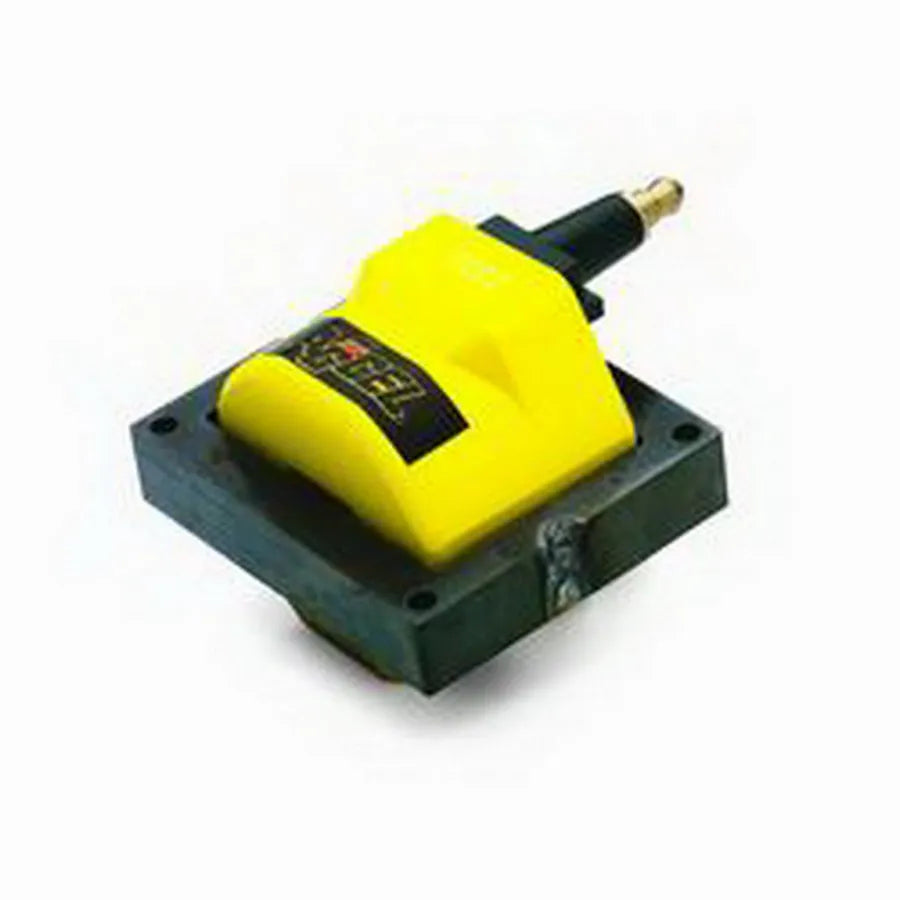

Ignition Coil Supercoil Remote Mount 1984-1995 GM Hei This GM Hei Remote Mount Coil Has A Maximum Voltage Of 48,000 Volts ACCEL

Part #: 140011

Engineered with optimized low resistance, high turns ratio windings around an M36 high silicone magnetic steel E-core for higher energy and voltage outputs.

Compatible with late model GM computer controlled remote mount HEI systems.

Direct bolt-in, plug-in replacement.

Brass coil wire contact increases energy transfer and resists corrosion better than aluminum.

Complete with new mounting hardware.

• 10-15 Percent More Energy
• Direct Plug In Replacement Direct OE Fit
• Advanced Bobbin Technology
• Highly Specialized Silicone Magnetic Steel Cores
• Standard Motor Products SMP DR-37
• MSD 8226

Details:

• Brand: Accel
• Quantity: 1
• Color: Yellow
• Cylinders: 8
• Maximum Voltage: 48,000 volts
• Peak Increase In Energy Vs: 36 Percent
• Primary Resistance: 0.3 Ohms
• Secondary Resistance: 8.8 k Ohms
• Turns Ratio: 134:01:00
• Warranty: Manufacturer's Limited 90 Day Warranty

Features:

• 10-15% More Energy
• Direct Plug In Replacement Direct OE Fit
• Advanced Bobbin Technology
• Highly Specialized Silicone Magnetic Steel Cores
• Standard Motor Products SMP DR-37
• MSD 8226

Ignition Coil - Super Coil - E-Core - 0.300 ohm - Male HEI - 48000V - Yellow / Black - Each
