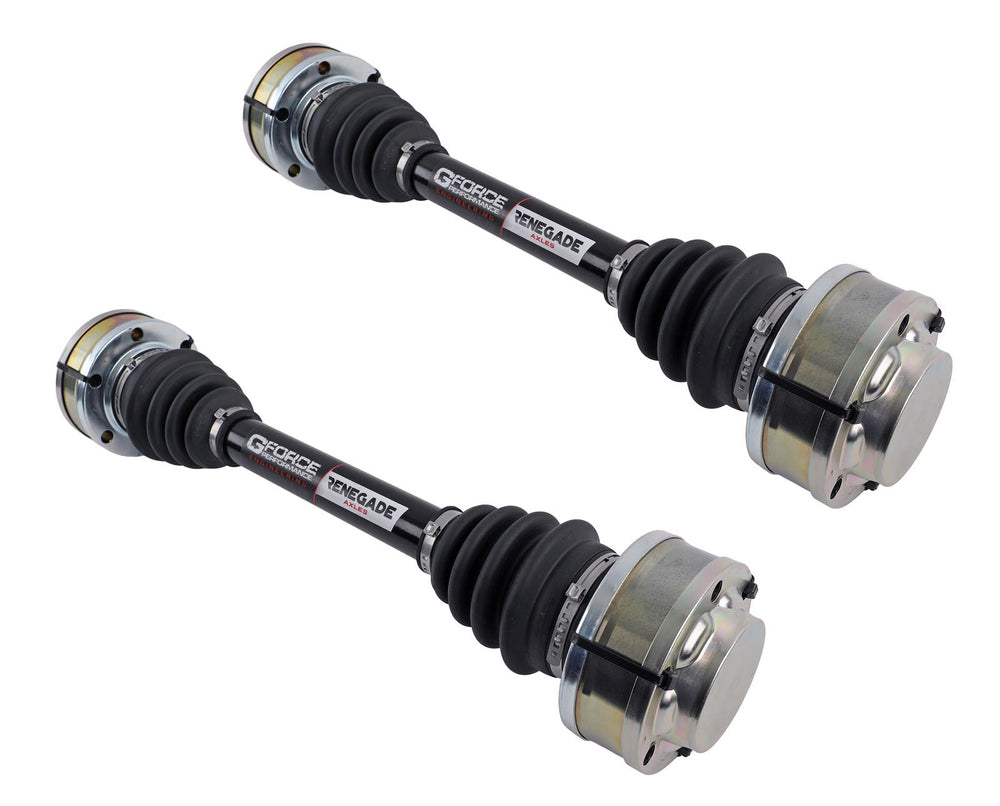

Renegade Axle Set

The GForce Engineering Renegade Axles (GTO10125A) are high-performance, direct-replacement axle sets for the 2004-2006 Pontiac GTO (VZ platform). Constructed from proprietary aerospace billet alloy, the Renegade axles feature an upgraded 31-spline axle bar and 31-spline billet machined CV joints. This design offers more spline engagement and allows for larger diameter axle bars, resulting in unparalleled strength. The billet machined CVs also provide increased travel and operating angles compared to OEM components, along with enhanced wear characteristics and durability over standard 108mm CVs. Key features include anti-wheel hop technology, a direct bolt-in fit and finish, severe-duty 31-spline CVs, aircraft-grade certified alloys, and CNC machining. The axles are powder-coated for corrosion protection. Each component is meticulously designed, machined, and assembled in-house in Wichita, Kansas. These axles are backed by a Lifetime Warranty from GForce. Installation is designed to be a direct replacement for factory axles, with an estimated time of 1–2 hours per side. Professional installation is recommended. While designed for high-horsepower applications, it is noted that the factory rear end is often the limiting factor for builds exceeding 650 HP, suggesting a GForce 9” conversion for greater reliability in such cases. The axles bolt up to factory outer stubs and factory or GForce Level 2 inner stubs. They are not recommended for heavily lowered vehicles due to potential axle angle limitations.
