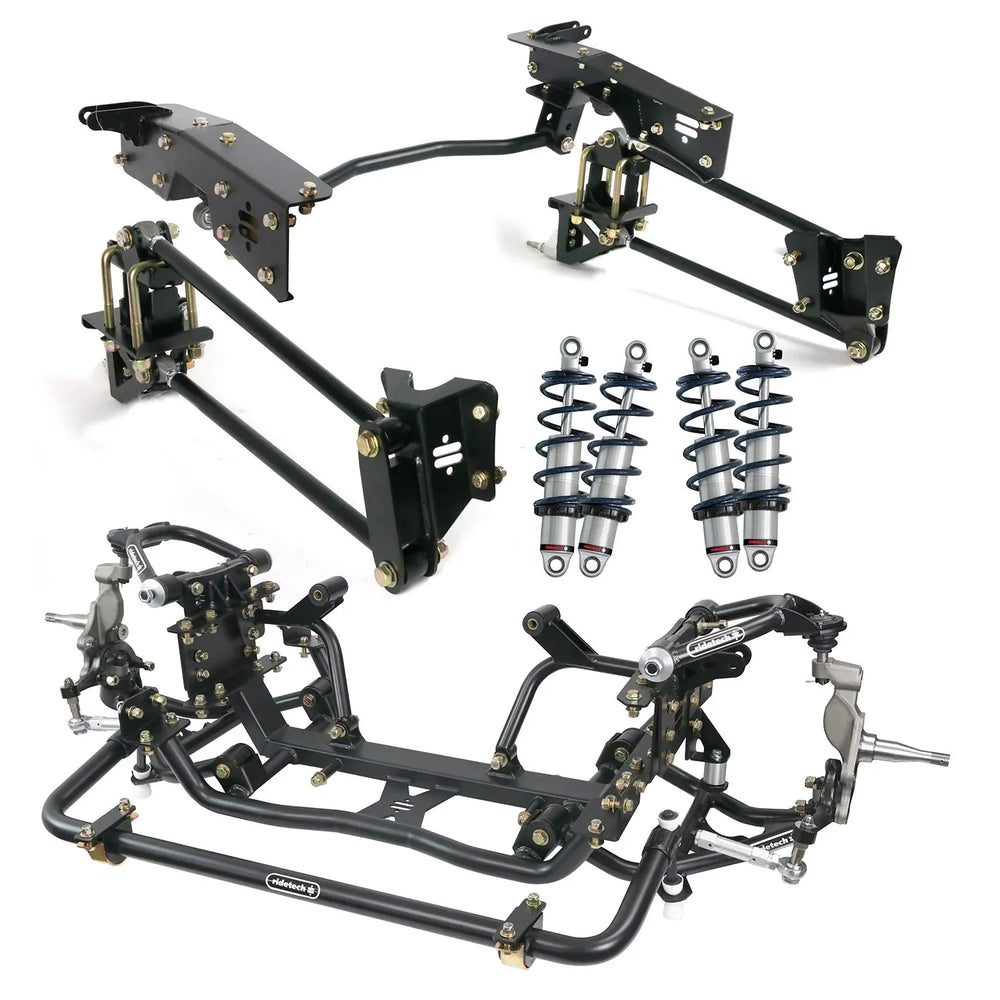

Ridetech 65-72 Ford F-100 2WD Complete Coilover Suspension System w/ Pin Spindle

The Ridetech Complete Coil-Over Suspension System (12320201) is designed to provide unmatched performance and handling for classic Ford F-100 and F-150 trucks. This bolt-in system replaces the entire factory front crossmember with a more rigid and stronger bolt-on front crossmember. It utilizes a 'Fox Mustang' style steering rack (sold separately) and features control arms with pre-installed ball-joints and Delrin bushings for smooth, squeak-free, and long-lasting performance. The system offers options for caster adjustment and uses Ridetech tall 'pin' spindles that are compatible with 'AFX brake kits' and are dual-drilled for 5 x 4.5" or 5 x 4.75" lug patterns. Optional 'Hub' Spindles are also available, offering late model Mustang hubs and brakes, compatible with 2015-2023 Mustang brake systems. The front suspension is 4 inches narrower than a Crown Vic, providing options for traditional offset wheel choices and fitting 14-inch and larger wheels. It includes motor mount options for Modular Ford, Ford FE, Small Block Ford, Chevy LS / Small Block / Big Block engines. A 1.5" x .250 wall front sway bar with billet aluminum frame straps and low friction bushings is included. The system also features adjustable bump stops and a rack and pinion steering conversion kit (sold separately). The entire front system saves approximately 130 lbs from the front of the truck.

The rear of the truck utilizes a proven 4-link design for a low stance while retaining full use of the bed floor and load capacity. It includes a bolt-in c-notch that improves the strength of the original frame and provides mounts for new control arms and a panhard bar. The coil-over system provides adjustable ride height (approximately 5" lower than stock) and allows for easy spring rate changes with Hyperco springs. The Fox Factory monotube-gas-pressure shocks have 24-position rebound adjustment clicks, large 1.834" pistons, heavy-duty 5/8" shafts, and impact-forged aluminum bodies. This rear system reduces rear weight by 50 lbs.
