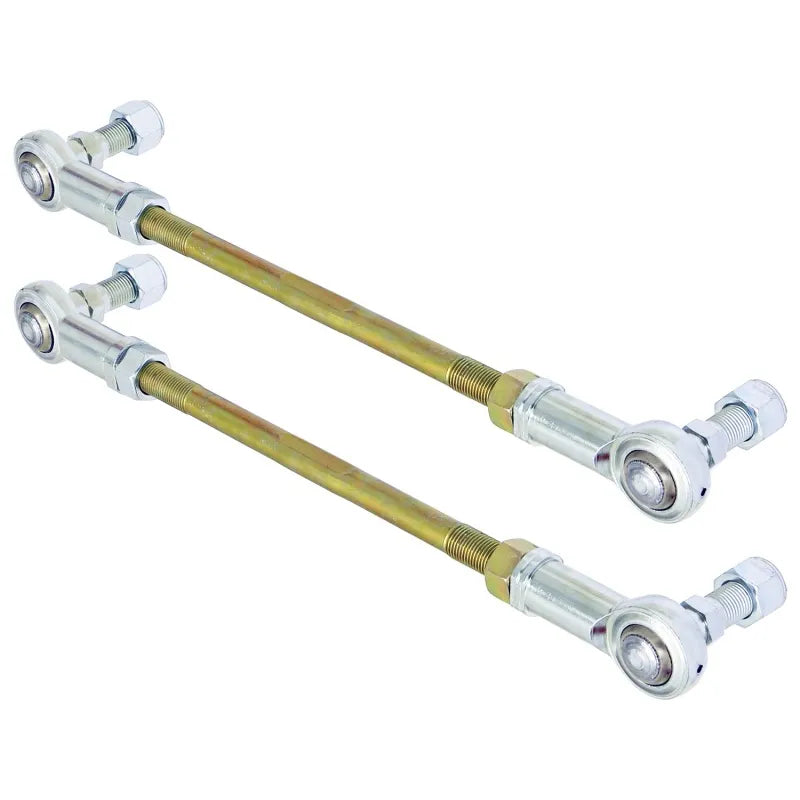

Adjustable Sway Bar End Link Kit (12 1/2 Inch Long Rods w/ Heims and Jam Nuts pair) RockJock 4X4

Part #: RJ-253203-101

RockJock's Adjustable Sway Bar End Link Set features 12 1/2 inch long link rods and premium studded heim joints. The rods feature 2 5/8 inch of 1/2 inch-20 LH thread and 2 5/8 inch of 1/2 inch-20 RH thread, providing adjustment as-is and extra thread, allowing you to cut them shorter as deemed necessary by your application.Link sets are included in our Antirock Sway Bar Kits, but are able to be used universally in many applications to replace non-adjustable sway bar links. Additionally, if you have changed the lift amount on your vehicle you may need a different length of sway bar links to accommodate your new lift.You can simply buy a complete new link set to accommodate your needs. The heim joints in this kit feature 1/2 inch-20 RH thread studs and nyloc nuts and jam nuts are included.Kit Fits:Universal UseKit Includes:(2) 12 1/2 in. Link Rods (gold) (RJ-517200-1)(2) 1/2 in.-20 LH Studded Heim Joint Kit (CE-99006LK)(2) 1/2 in.-20 RH Studded Heim Joint Kit (CE-99006K)Gold Rod Specs.:12 1/2 in.1/2 in. Diameter1/2 in.-20 LH Threads - 2 5/8 in. Long1/2 in.-20 RH Threads - 2 5/8 in. LongCenter Smooth Area - 7 1/4 in. LongAdjustment Range:Closed - At maximum trimming of this rod (15/16 in. of thread left on each side and the heims andamp; jam nuts screwed on til they meet the smooth area of the rod), C-C is 12 3/8 in.Extended - Uncut rods with heims installed safely adjust out to 15 3/4 in. C-CNotes:Wrench flats on the gold rods require an 11mm wrench, jam nuts are a 3/4 in. wrench and heim joints are a 19mm wrench.

Antirock (R) Sway Bar End Link Kit | Adjustable | 12.5 in. Long Rods w/Heims And Jam Nuts | Pair
