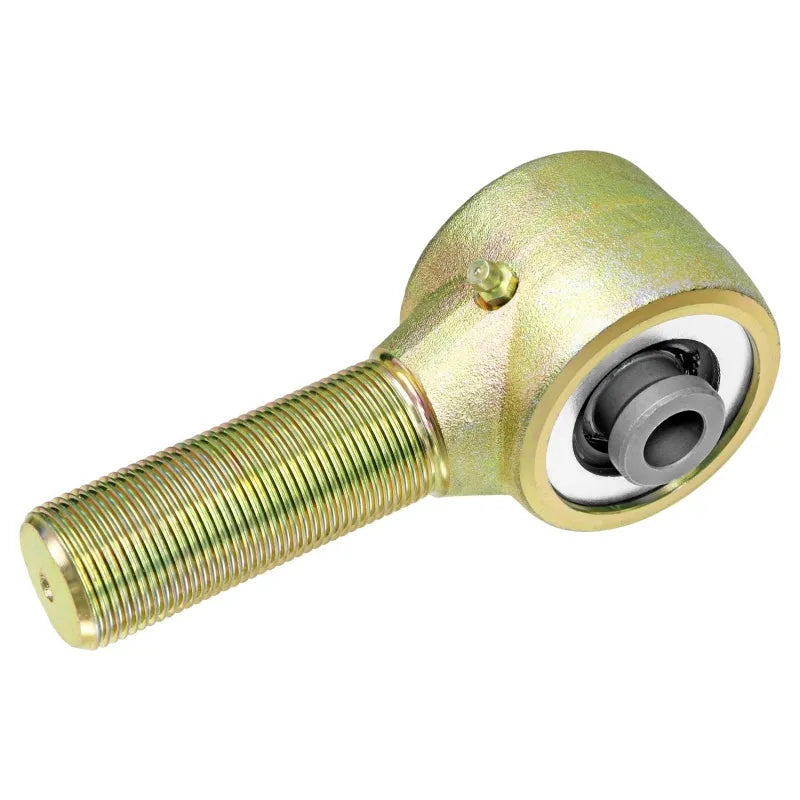

Johnny Joint Rod End 2 1/2 Inch Forged 2.440 Inch x .570 Inch Ball 1 1/4 Inch-12 RH Threaded Shank Externally Greased RockJock 4X4

Part #: CE-9114-16

RockJock's forged Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball.The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.This specific joint is a 2 1/2 inch diameter, fitted with a zerk fitting for greasing, 2.3 inch of 1 1/4 inch-12 right hand threads on the shank, and a 2.440 inch mounting width ball with a .570 inch thru bolt hole. Finished in gold zinc plating.

Johnny Joint (R) Rod End | 2.5 in. | Forged | 2.440 in. x .570 in. Ball | 1.25 in. 12 RH Threaded Shank | Externally Greased
