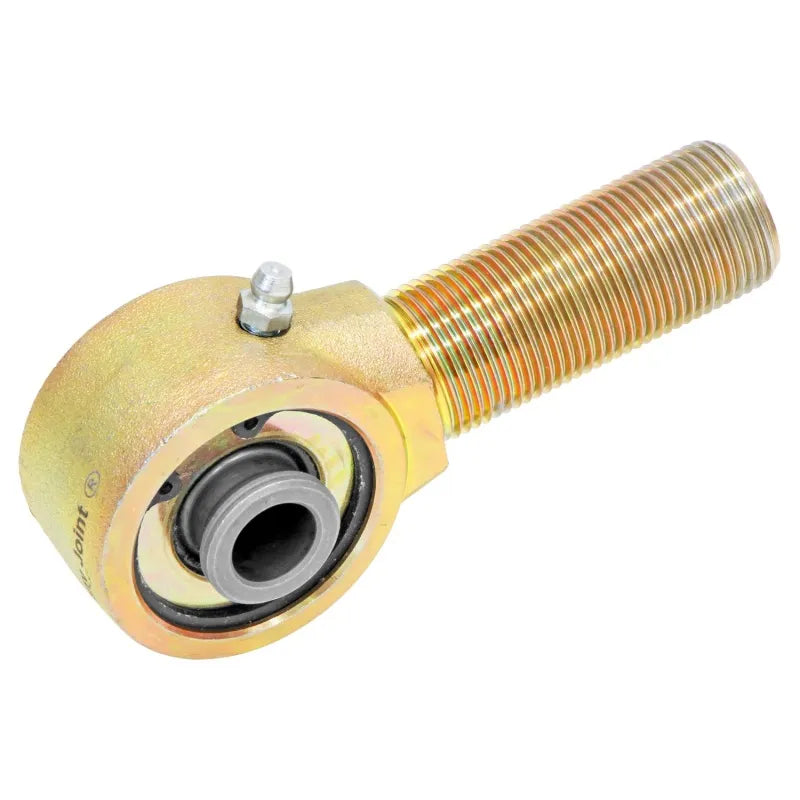

Johnny Joint Rod End 2 Inch Narrow Forged 1 Inch-14 RH Threads 1.600 Inch x .510 Inch Ball RockJock 4X4

Part #: RJ-301300-101

RockJock's narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball.The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.This specific joint features a narrow 2 inch diameter joint body, fitted with a zerk fitting for greasing, 2.3 inch of 1 inch-14 right hand threads on the shank, and a 1.600 inch mounting width ball with a .510 thru bolt hole. Finished in gold zinc plating.

Johnny Joint (R) Rod End | 2 in. | Narrow Forged | 1 in.-14 RH Threads | 1.600 in. x .510 in. Ball
