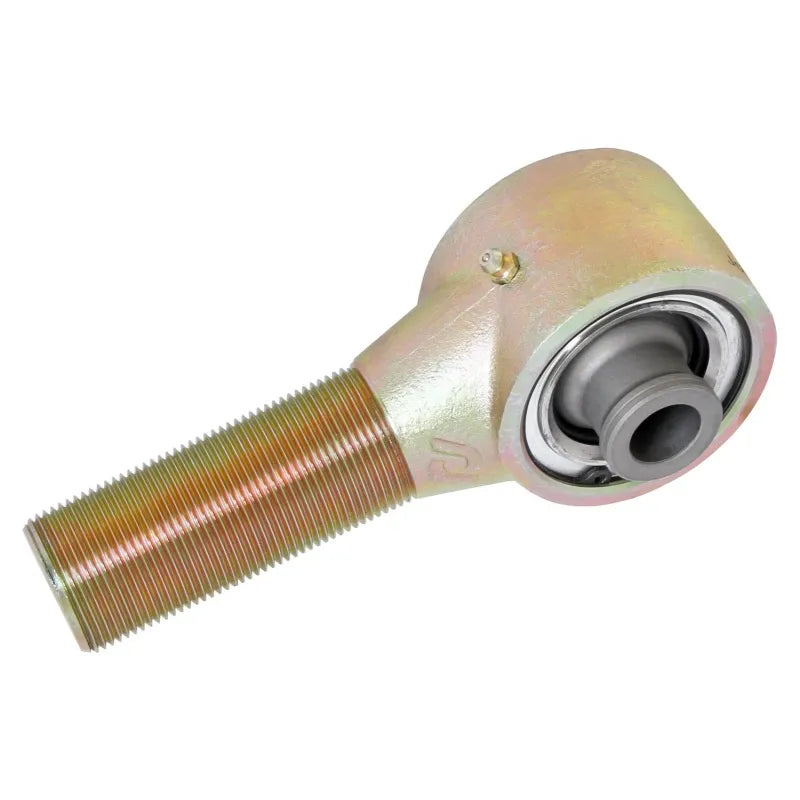

Johnny Joint Rod End 3 Inch Narrow Forged 1 1/2 Inch-12 RH Threads 3.250 Inch x 3/4 Inch Ball RockJock 4X4

Part #: RJ-365500-102

RockJock's narrow forged Johnny Joints for fabricators and suspension system builders offer up to 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball.The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.This specific joint features a narrow 3 inch diameter joint body, fitted with a zerk fitting for greasing, 3.67 inch of 1 1/2 inch-12 right hand threads on the shank, and a 3.250 inch mounting width ball with a .750 thru bolt hole. Finished in gold zinc plating.Kit Fits:Universal ApplicationKit Includes:(1) Forged Johnny Joint AssemblyRod End Specs:Capable of 35 degrees of overall articulation travelForged 4140 chromoly construction3 in. o.d. narrow bodyMeasures 6 in. from CL of the joint to the end of the tip of the threads3.670 in. of 1 1/2 in.-12 RH threadsFeatures our CE-91112 center pivot ball (3.250 in. x .750 in.)Notes:This joint is capable of 35 degrees of overall articulation travelJohnny Joints require non-synthetic, hi-moly lube grease such as our CE-9013GApplicable Johnny Joint Tool for these Control Arms: CE-9111TParts List:Johnny Joint Forging: RJ-365500-2Center Pivot Ball: CE-91112Bushing (one piece): CE-91113SMachined Side Washer: RJ-533001-1Snap Ring: CE-91115Zerk Fitting: CE-1103K21

Johnny Joint (R) Rod End | 3 in. | Narrow Forged | 1.5 in.-12 RH Threads | 3.250 in. x 0.75 in. Ball
