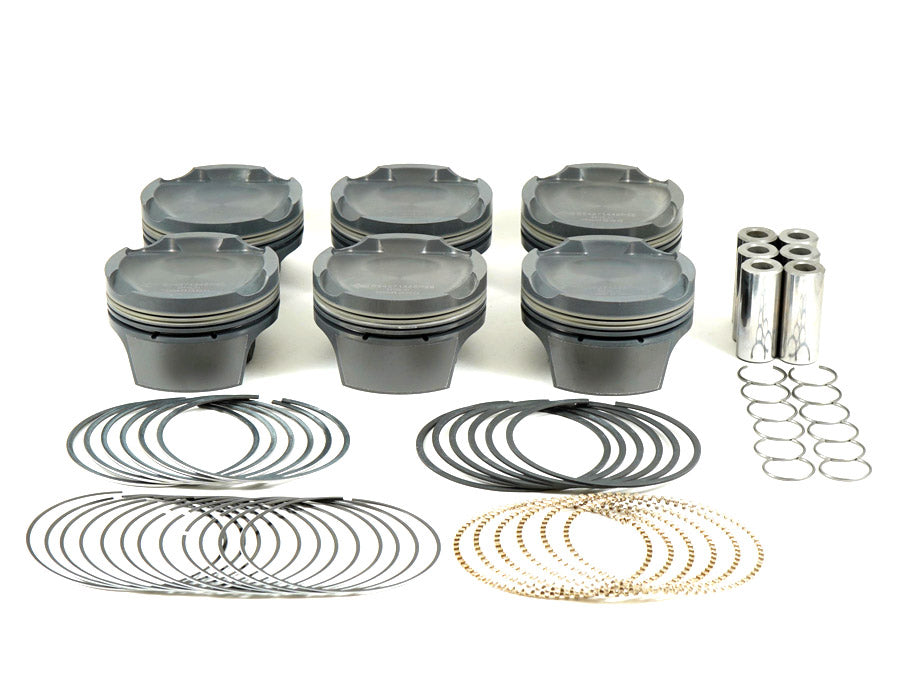

S54 87.50mm 12.5:1 Forged Piston Set

The Mahle Motorsports S54 pistons are forged for strength, light weight, and low drag, offering a more specialized application than stock BMW pistons. Factory BMW pistons are cast aluminum, suitable for intended power output and durability, but can become a weak link when performance is increased. The strength of cast parts is susceptible to heat, detonation/knock, and other timing or fuel issues, which can make them brittle or deform them. Forged pistons, however, are inherently stronger and more robust in extreme conditions. This set is a second oversize (87.50mm bore) for when cylinders require machining and features a high compression ratio of 12.5:1 for added performance. Key specifications include a 91.0mm stroke, 139.0mm rod length, 32.3mm compression height, 21mm pin diameter, and a -9.2cc piston crown volume. Mahle utilizes their high-performance 2618 alloy for these S54 pistons, a material typically reserved for racing and heavy-duty applications. The 2618 alloy is low in silicon and high in expansion, providing better tolerances and higher resistance to detonation. These pistons are softer and more ductile than those with higher silicon content, allowing them to better absorb combustion forces before failure. A potential side effect is minor piston slap noises when cold, which should dissipate as the engine reaches operating temperature. They feature a Grafal coating on the piston skirts to reduce drag, friction, scuffing, and cylinder bore wear, along with a phosphate coating on other surfaces. Each piston set includes rings, wrist pins, and circlips. Made in the USA. BMW Fitments: - 3 Series E46 (99-05) > M3 - Z Series E36/7 / E36/8 Z3 (96-02) > Z3 M - S54 - Z Series E85 / E86 Z4 (03-08) > Z4 M
