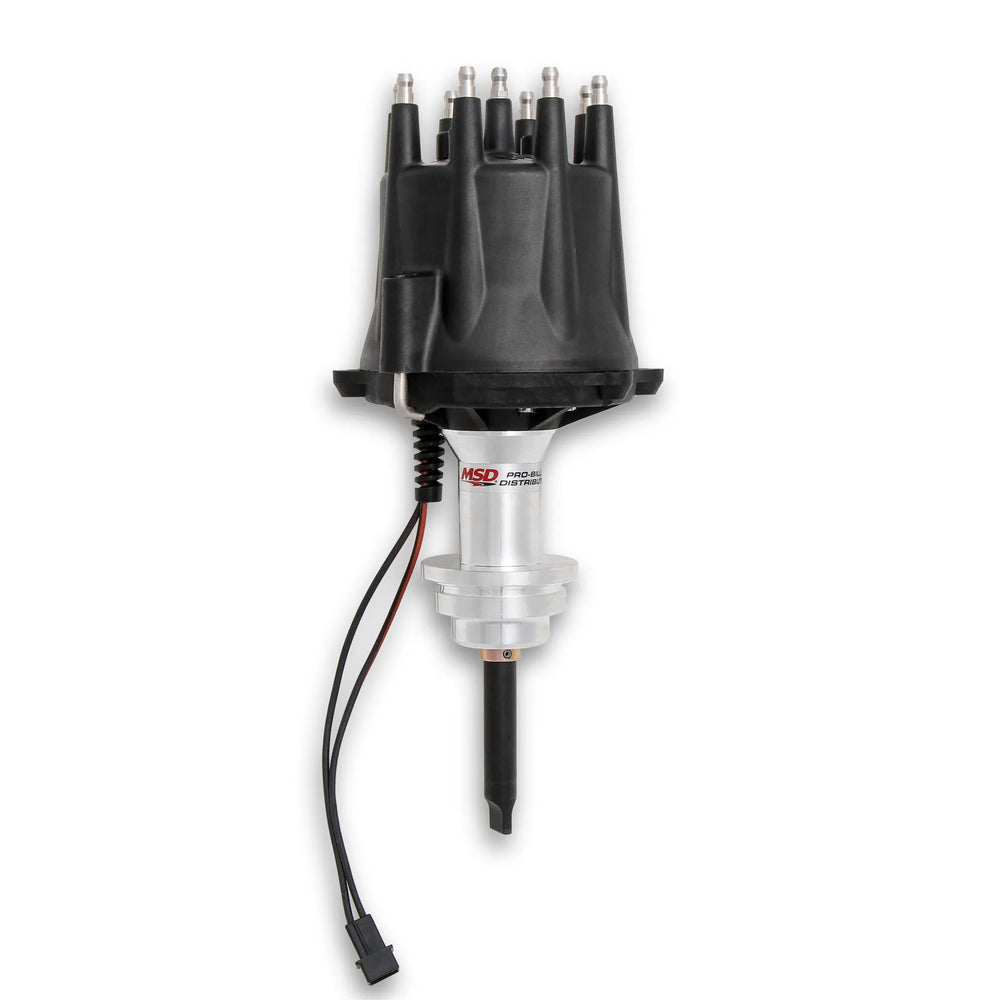

MSD Black Chrysler 318-360 Pro-Billet Distributor All The Performance Of Our Pro-Billet Line Now Available With Black Cap For Your Small Block Chrysler. Must Be Used With MSD 6, 7, Or 8-Series Ignition MSD Ignition

Part #: 85345

Different springs and stop bushings are supplied so you can tune an advance curve to match your application.Get your Small Block Mopar fired up with billet accuracy and performance. The MSD Black Cap includes 316 Stainless Steel terminals and Race Rotor and underneath you'll find easy access to the adjustable mechanical advance assembly for easy adjustments. This advance is designed for accuracy and strength with TIG-welded weight pins, nylon pads for smooth movement of the weights and a QPQ coating for friction reduction.Supporting the advance assembly is a hardened, polished steel shaft. Two ball bearing guides are used to support the shaft producing incredible stability. Precision paddles of a zinc-plated reluctor pass a maintenance-free magnetic pickup creating a trigger signal that tells the MSD to fire.Advance weight pins are staked and tig welded to the plateEasy-to-adjust mechanical advance with supplied springs and stop bushings (except locked out versions)Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reductionPolished steel shaft is QPQ coated and guided by a sealed ball bearing for smooth operation at all rpmsMechanical advance assembly can be locked out for crank trigger systems or racing applicationsMaintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm rangeMust be used with an MSD Ignition ControlCNC machined billet aluminum housing and billet aluminum base providing superior strength and great looksSupplied with black cap w/316 stainless steel terminalsNylon pads ensure smooth operation of the advance weightsDetails:Distributor Cap Included: YesDistributor Type: Magnetic PickupEmission Code: 3Ignition Box Required: YesIgnition Coil Included: NoIgnition Rotor Included: YesWarranty: Manufacturer's Limited 1 Year Warranty

Features:

• Must be used with an MSD Ignition Control
• Supplied with black cap w/316 stainless steel terminals
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing for smooth operation at all rpms
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• CNC machined billet aluminum housing and billet aluminum base providing superior strength and great looks
• Easy-to-adjust mechanical advance with supplied springs and stop bushings (except locked out versions)
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Advance weight pins are staked and tig welded to the plate
• Nylon pads ensure smooth operation of the advance weights
• Mechanical advance assembly can be locked out for crank trigger systems or racing applications

All the performance of our Pro-Billet line NOW available with Black cap for your small block Chrysler. Must be used with MSD 6, 7, or 8-series ignition.
