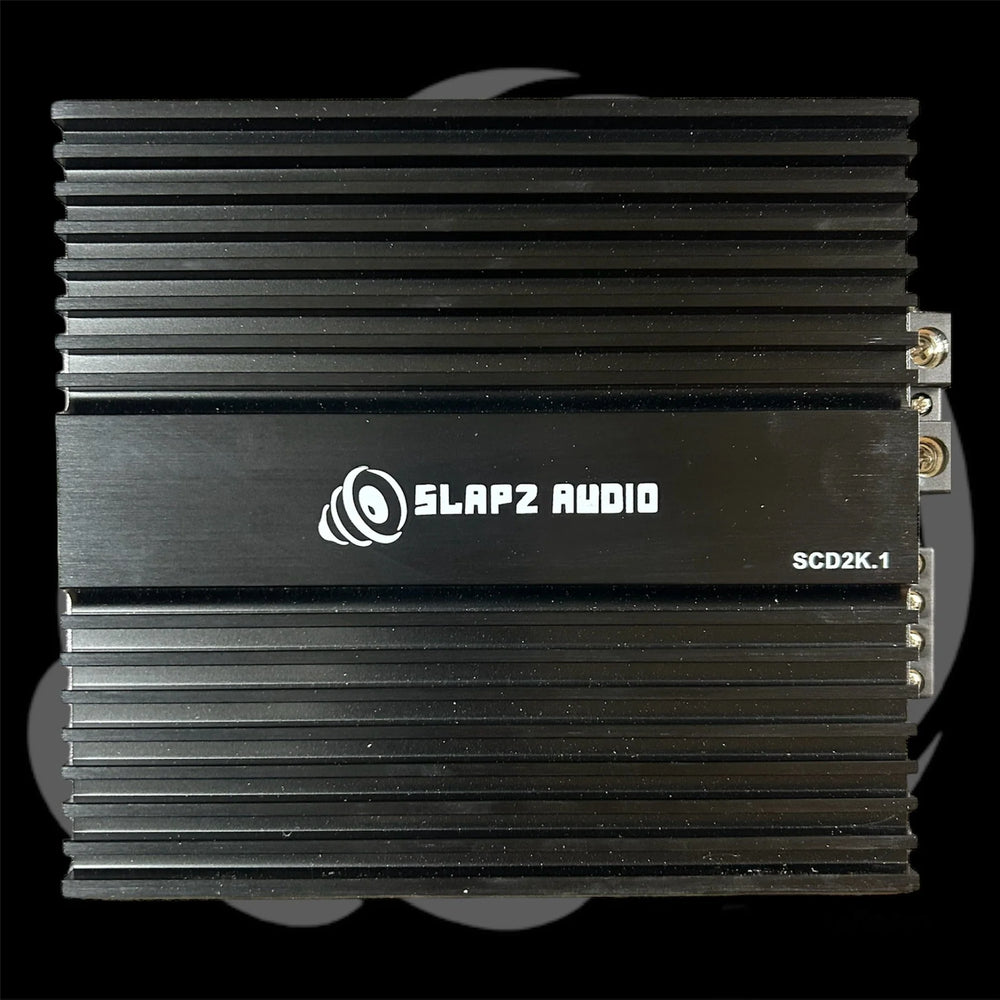

SCD2K.1 Class D Mono Amplifier

The Slapz Audio SCD2K.1 is a class D mono amplifier engineered to deliver robust power for your car audio setup. It boasts a substantial 2000W RMS output at 1 ohm, scaling down to 1200W at 2 ohms and 800W at 4 ohms, making it a versatile option for various subwoofer configurations. This amplifier is equipped with a bass knob for on-the-fly adjustments and features a clip and protection indicator for monitoring its status. Connectivity is handled via 0 gauge power inputs and dual 8 gauge speaker outputs, ensuring adequate power delivery and secure connections. The amplifier's specifications include a wide frequency response from 10Hz to 20kHz and a signal-to-noise ratio exceeding 90dB for clean audio output. It also incorporates adjustable crossover controls, with a high-pass filter (HPF) ranging from 10Hz to 80Hz and a low-pass filter (LPF) from 80Hz to 15kHz, alongside a variable bass boost from 0 to 10dB. The input sensitivity can be set between 0.3V and 5V. Important operational notes are provided, including a warning that this amplifier is not stable at 0.5 ohm. Attempting to run it at this impedance may cause damage to the MOSFETs and board, voiding the warranty. The unit operates within a supply voltage range of 10V to 16V and has a maximum current draw of 200A. Wiring and installation best practices are recommended to be followed via available video tutorials to ensure optimal performance and longevity.
