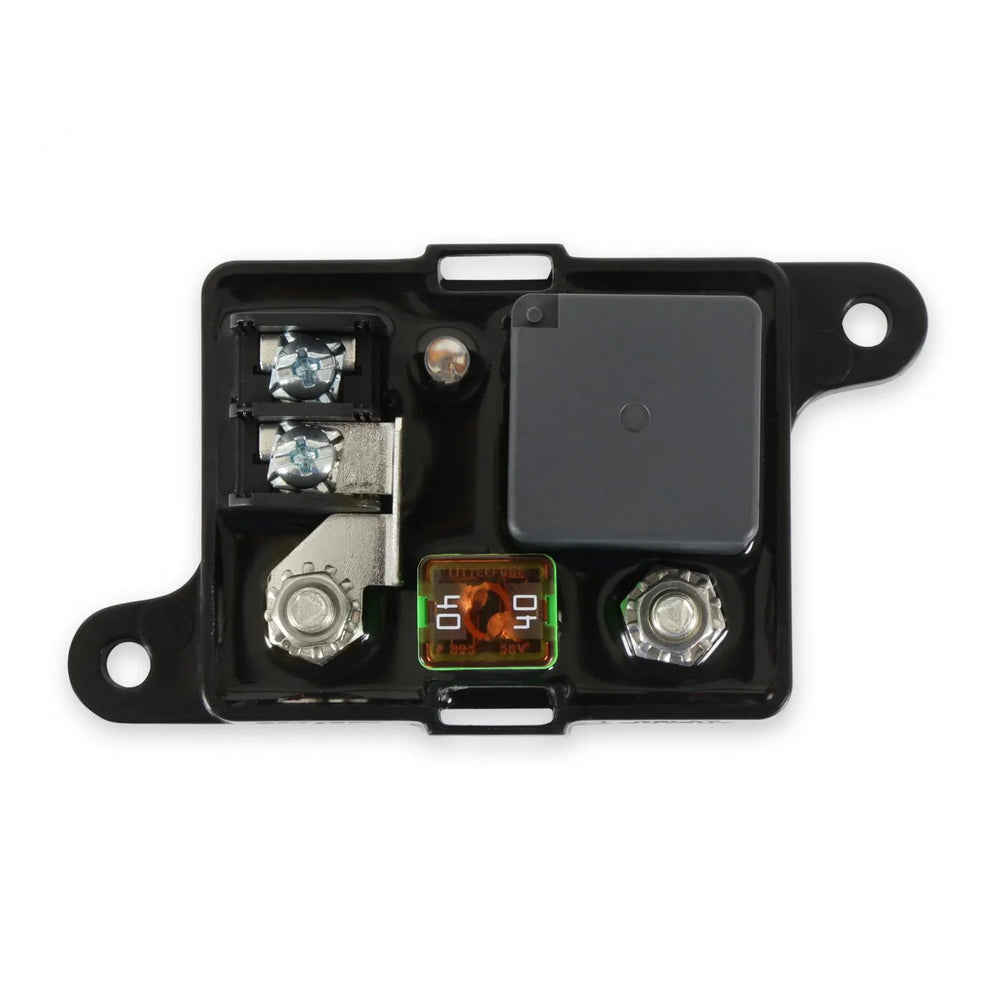

MSD Single Channel Relay Module Single 40 Amp Relay MSD Ignition

Part #: 7566-1

MSD relay modules are designed to be easily installed in most automotive electrical systems where a high amperage relay is needed. These relay modules are perfect use with high amperage electric fuel pumps and high CFM electric cooling fans. Each relay comes with a 40amp fuse, however lower amp fuses can be installed if required. The relay housing comes with a labeled lid that snaps into place providing a clean installation, and protecting the main power stud and triggers from contamination or accidental contact.LED status indicators, show you which channel is triggered at a glanceLow profile JCASE fuses provide ample protection in case of a shortRemovable cover for easy accessibility7V to 20V supply to fit a wide variety of applicationsConfigurable single-wire activation with Ground (-) input or 12V (+) input, with removal of the Tie-BarIndependent 40A outputs, to supply power to most aftermarket fuel pumps and electric fansDetails:Emission Code: 5Warranty: Manufacturer's Limited 1 Year Warranty

Features:

• 7V to 20V supply to fit a wide variety of applications
• Independent 40A outputs, to supply power to most aftermarket fuel pumps and electric fans
• Configurable single-wire activation with Ground (-) input or 12V (+) input, with removal of the Tie-Bar
• Removable cover for easy accessibility
• Low profile JCASE fuses provide ample protection in case of a short
• LED status indicators, show you which channel is triggered at a glance

Single 40 Amp Relay
