SmartShell Reaction Sun Gear Shell

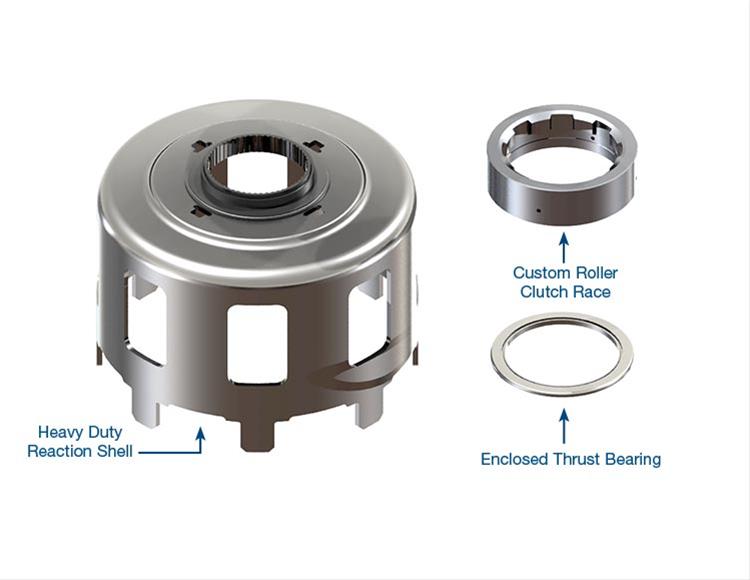

The Sonnax SmartShell (part number 77749-02K) is a heavy-duty reaction sun gear shell engineered to replace the OE component in 4L60, 4L60E, 700R4, 4L65E, and 4L70E transmissions. The original sun gear shell is identified as a significant weak point, frequently failing due to worn or stripped splines. The SmartShell addresses the OE weakness by incorporating several design improvements. Its hub area is reinforced with a laser beam welded collar and undergoes a final machining process for precise alignment. Furthermore, the shell splines and lugs are heat-treated to significantly improve their durability. A key innovation is the custom bearing assembly and roller clutch race, which effectively reroutes the thrust load directly to the carrier. This design completely bypasses the small captured planetary bearing, which in the original design is overloaded by the thrust load passing through the shell and sun gear. This heavy-duty reaction shell kit offers a robust solution for transmissions experiencing or susceptible to sun gear shell breakage. It provides a stronger alternative to traditional aftermarket shells without unnecessary added weight. The Sonnax SmartShell is an essential upgrade for those rebuilding or enhancing the performance and reliability of these specific automatic transmissions.
