Ignitions and Electrical› Wiring Components
Racepak
SMARTWIRE KIT
SKU: R00N 500-KT-SW30
Moderate — 2–4 hours
Overview
Show original supplier description
Part #: 500-KT-SW30
The Racepak SmartWire is the easiest way to wire any vehicle while adding modern electronic features and functions.
Features:
- 125 Total Amp Capacity
- Min/Max Power Supply: 8-20 Volts
- Operating Power Supply: 12-16 volt automotive applications
- 30 Total Output Channels
- Output Protection: User definable over current limits. Internal short circuit and/or thermal overload (non definable)
- 8 Channels @ 20 Amps Maximum for high amperage applications such as electric fuel pumps or starter solenoids.
- 22 Channels @ 10 Amps Maximum for low amperage applications such as head lights, turn signals, or small cooling fans.
- 12 Hardwired Switched Inputs - Voltage triggered >2.7V or Ground Triggered <2.5V
- Data Output: Volts, Amps, Status (On/Off).
- Test Mode: This software integrated feature allows you to quickly determine if an input or output is working as intended.
- Response Time: 3.0 Miliseconds
- Programming: USB Cable w/ Free Datalink II Software
- Dimensions: 6" (L) x 5.5" (W) x 1.5" (H)
- Connectors: Two - 23 pin Ampseal, One 1/4" x 20 Main Power Stud, One mini USB (for programming), One Switch CAN bus (for optional switch panel or module), One V-Net CAN bus for optional V-net accessories, such as sensors).
SmartWire Power Distribution Module
Product descriptions are provided by our supplier partners and may not always be perfectly accurate. Not sure this fits? or call (760) 282-4645 and we’ll verify before you order.
Fitment
Fitment Guaranteed
Don’t gamble
on fit.
Log your build in the MOTORMIA app and we’ll guarantee this part fits your exact setup — or your money back, return shipping covered.
Available on iOS & Android
Specifications
| Brand | Racepak |
| Part Number | R00N 500-KT-SW30 |
Videos
Racepak Smartwire Drag and Street Kits

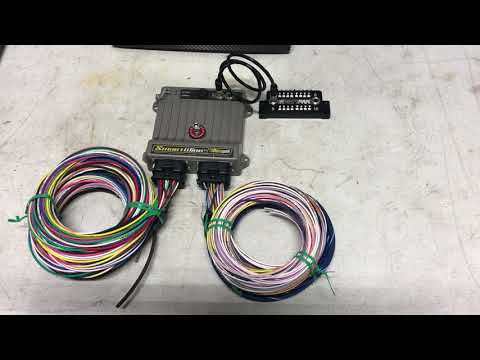

Racepak Smartwire comparison to the norm
Racepak's Smartwire Power Distribution Module explained | High Performance Academy
How to program your Racepak Smartwire
Wiring a Racepak Smartwire
Racepak Smartwire & IQ3S Install Begins! - RA24 Toyota Celica Project

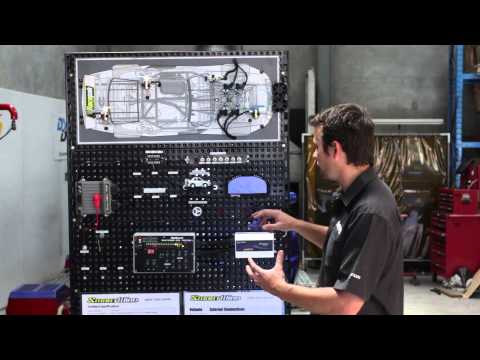

Haltech Technically Speaking: Smartwire Overview
Racepak Smartwire integration to Holley Efi
SmartWire Applications: Drag Racing
