SMARTWIRE STREET KIT

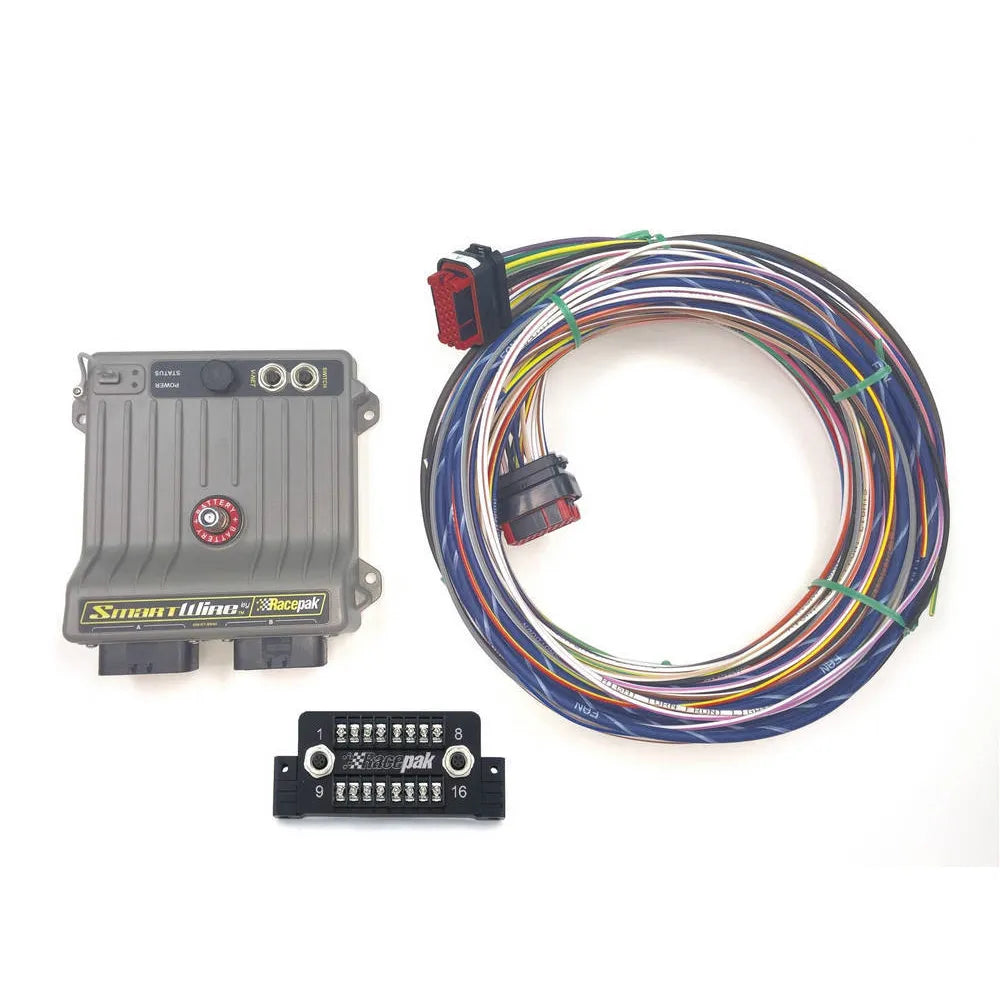

The Racepak 500-KT-SWST Smartwire Power Control Module is a comprehensive electrical management system designed for various motorsports applications. It is suitable for 12-16 volt automotive systems and other land, water, and snow-based motorsports. This module offers 30 output channels, with 8 high-amperage (20 Amps max) and 22 low-amperage (10 Amps max) channels. It features user-definable overcurrent limits, internal short circuit, and/or thermal overload protection. The unit includes 12 hardwired switched inputs, data output for volts, amps, and status, and can be programmed via a USB cable with the free Datalink II Software. Its dimensions are 6" (L) x 5.5" (W) x 1.5" (H), and it has two 23-pin Ampseal connectors, a 1/4" x 20 Main Power Stud, a mini USB, a Switch CAN bus, and a V-Net CAN bus.
