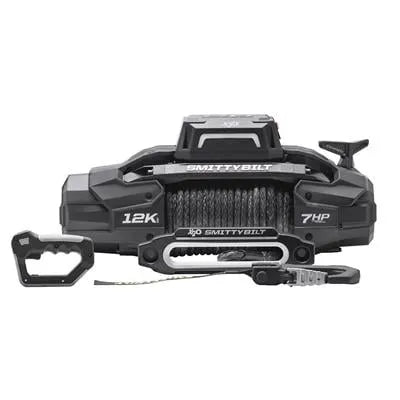

X2O Gen3 12k Winch with Synthetic Rope Smittybilt

Part #: 98812

The Smittybilt X2O winches have been enhanced in almost every area for increased performance and trouble free operation. Every X2O GEN3 winch features a series wound 7HP motor that is completely sealed, as well as all-new forged gears.The X2O line features a completely waterproof 500 Amp control box that can be mounted in 2 different locations. All-new wireless controller with Usb connectivity that can be wired to the winch or unplugged for trouble-free wireless operation.The X2O also features optimized gear ratios that deliver lightning- fast line speeds. The X2O series comes standard with a synthetic winch rope for maximum performance.Features and Benefits:Waterproofing: IP68 RatingRated Line Pull: 12,000Lbs (5,454kgs) Single LineMotor: 7hp Series WoundControl: Remote Switch, 12' (3.7m) leadGear Train: 3-Stage PlanetaryGear Ratio: 216:1Clutch: Sliding Ring GearBrake: Automatic Out-of-DrumDrum Size: Diameter 2.5 inchCable: 98.5' 3/8 inch DiameterCable Type: Synthetic RopeFairlead: HawseRemote Control: IncludedIntegrated Wireless RemoteRecommended Battery: 650CCA Minimum for WinchingBattery Leads: 25mm2, 72 inch(1.83m)1Finish: Textured BlackWeight: 76.0Lbs (30.4Kgs)Mounting Bolt Pattern: 10.0 inch x 4.50 inchOverall Dimensions: (L x W x H) 22.3 inch x 5.4 inch x 9.4 inchDetails:Color: BlackFitment: Universal FitLine Pull: 12000Line Type: Synthetic Rope

Features:

• Waterproofing: IP68 Rating
• Rated Line Pull: 12,000Lbs (5,454kgs) Single Line
• Motor: 7hp Series Wound
• Control: Remote Switch, 12' (3.7m) lead
• Gear Train: 3-Stage Planetary
• Gear Ratio: 216:1
• Clutch: Sliding Ring Gear
• Brake: Automatic Out-Of-Drum
• Drum Size: Diameter 2.5"
• Cable: 98.5' 3/8" Diameter
• Cable Type: Synthetic Rope
• Fairlead: Hawse
• Remote Control: Included
• Integrated Wireless Remote
• Recommended Battery: 650CCA Minimum for Winching
• Battery Leads: 25mm2, 72"(1.83m)1
• Finish: Textured Black
• Weight: 76.0Lbs (30.4Kgs)
• Mounting Bolt Pattern: 10.0" x 4.50"
• Overall Dimensions: (L x W x H) 22.3" x 5.4" x 9.4"

Smittybilt X2O GEN3 12K Winch with Synthetic Rope - 98812
