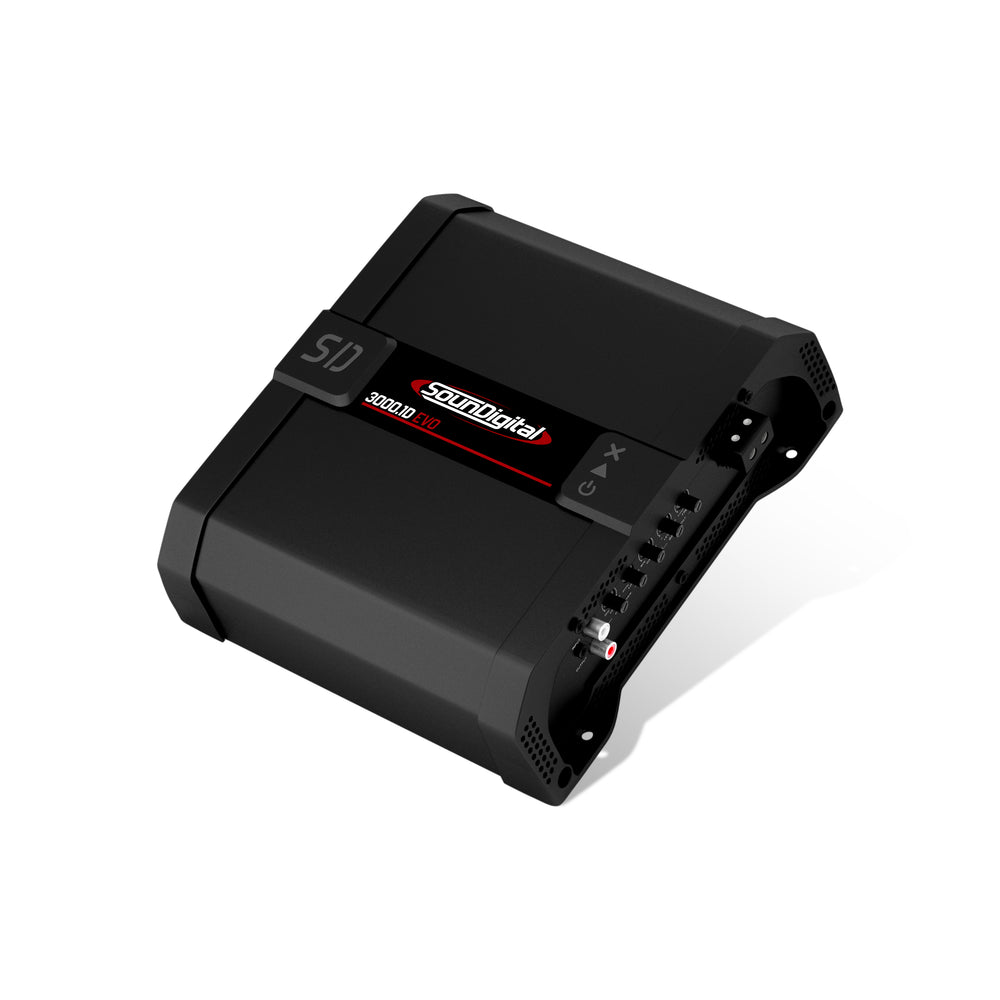

SoundDigital Mono Subwoofer Amplifier

The SoundDigital 3000.1D EVO is a mono subwoofer amplifier designed to deliver substantial power for your audio system. From the EVO line series, this amplifier is engineered to provide a great bass experience, powering subwoofwoofers with up to 3000 watts RMS. Its compact design facilitates easy installation, even in vehicles with limited space. This amplifier features a Class D design with a linear power supply, boasting an efficiency of over 90%. This advanced design not only lowers battery consumption but also contributes to producing solid and longer-lasting bass sounds. The amplifier operates within a voltage range of 9V to 16V and offers a damping factor greater than 1000, ensuring precise control over your subwoofer. Key specifications include a frequency response from 5 Hz to 25 kHz, a Signal-to-Noise ratio (SNR) of 84dB, and a THD of just 0.025% at 10% rated power. It also includes adjustable crossover filters (HPF: 5 Hz – 60 Hz, LPF: 80 Hz – 25 kHz) and a Bass Boost feature (0 – 12dB) with an adjustable range of 35Hz to 55Hz. Power output varies with voltage and impedance: at 12.6V, it delivers 1 x 3000 W RMS at 2Ω and 1 x 1650 W RMS at 4Ω. At 14.4V, it provides 1 x 2155 W RMS at 2Ω and 1 x 3918 W RMS at 4Ω. The recommended fuse rating is 150 A for music or 2 x 250 A for SPL applications.
