SOURCELT W/ AMBER LED SWITCH PANEL

The SourceLT is a small, solid-state 6-circuit control system designed to save hours of wiring and installation time. It provides a clean and safe way to power and control 12VDC accessories. Its compact footprint allows for endless placement options, eliminating the need for cutting, fishing wires into the cab, or tapping into the vehicle’s electrical system. It's an ideal solution for aftermarket electrical accessories with unmatched features.

Features include:
* 6 circuits rated at 30 amps at 12.5 VDC per circuit.
* 12-position terminal block for easy accessory attachment.
* 10-foot controller cable for simple plug-n-play connectivity.
* Integrated low voltage cutoff (LVCO) battery protection with optional override.
* Self-healing fault protection circuits (from 1.5 to 30 amps).
* Current-sensing MOSFETs controlled by a microprocessor (no fuses & no relays).
* 50amp auto-resetting circuit breaker.
* Nylon braided battery cables are hi-strand crosslinked copper wire with a silicone jacket.
* Operates on 12VDC.
* Built-in Bluetooth capabilities for remote control.
* Protection against overheating, over-current, shorts, reverse polarity, and field collapse.
* On-demand wireless software updates/upgrades.

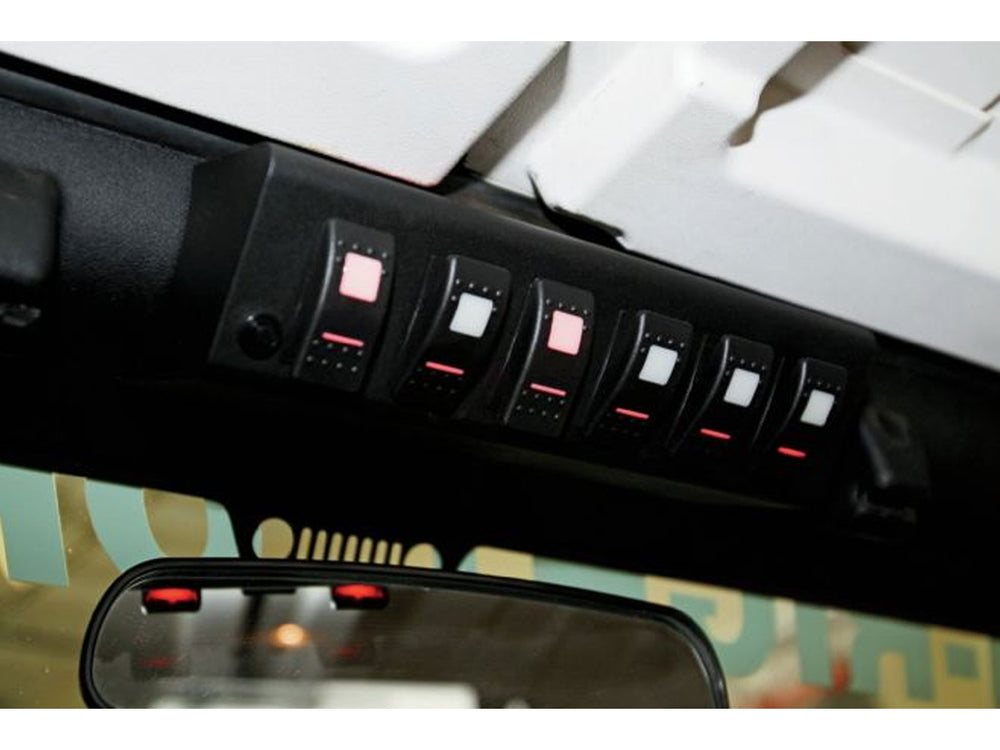

Switch Panel: Includes eight dual-lit LED switches (installed and pre-wired). All wires are wrapped in high-temp abrasion-resistant nylon braided sleeving. Comes with a 10-foot CAT-6 Ethernet cable, extendable up to 25 feet from BantamX. Each switch has 2 programmable modes: strobe or flash. Aluminum panels are formed, welded, and powder-coated. Carling Technologies Contura switches (certified to IP66/68 - marine/harsh environment). Controlled lower pilot light (push button). Custom laser-etched rockers are available. Ability to daisy chain panels for remote operations. Auto safe system shutdown when the panel is unplugged. Can run in conjunction with another 8-Switch panel, HD & Touchscreen. Two RJ45 ports available integrated into the CAN-Bus controller.

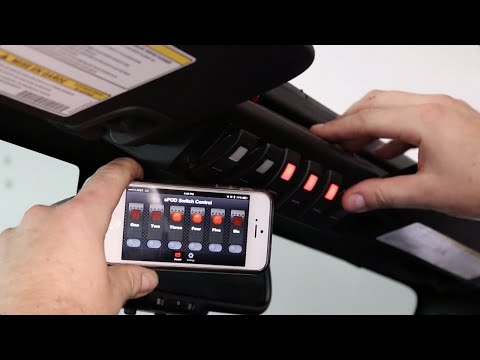

Features available through sPOD Mobile App: Dimming, Strobe, Flash, Momentary, Switch Linking, On-Road, and Off-Road modes of operation.
