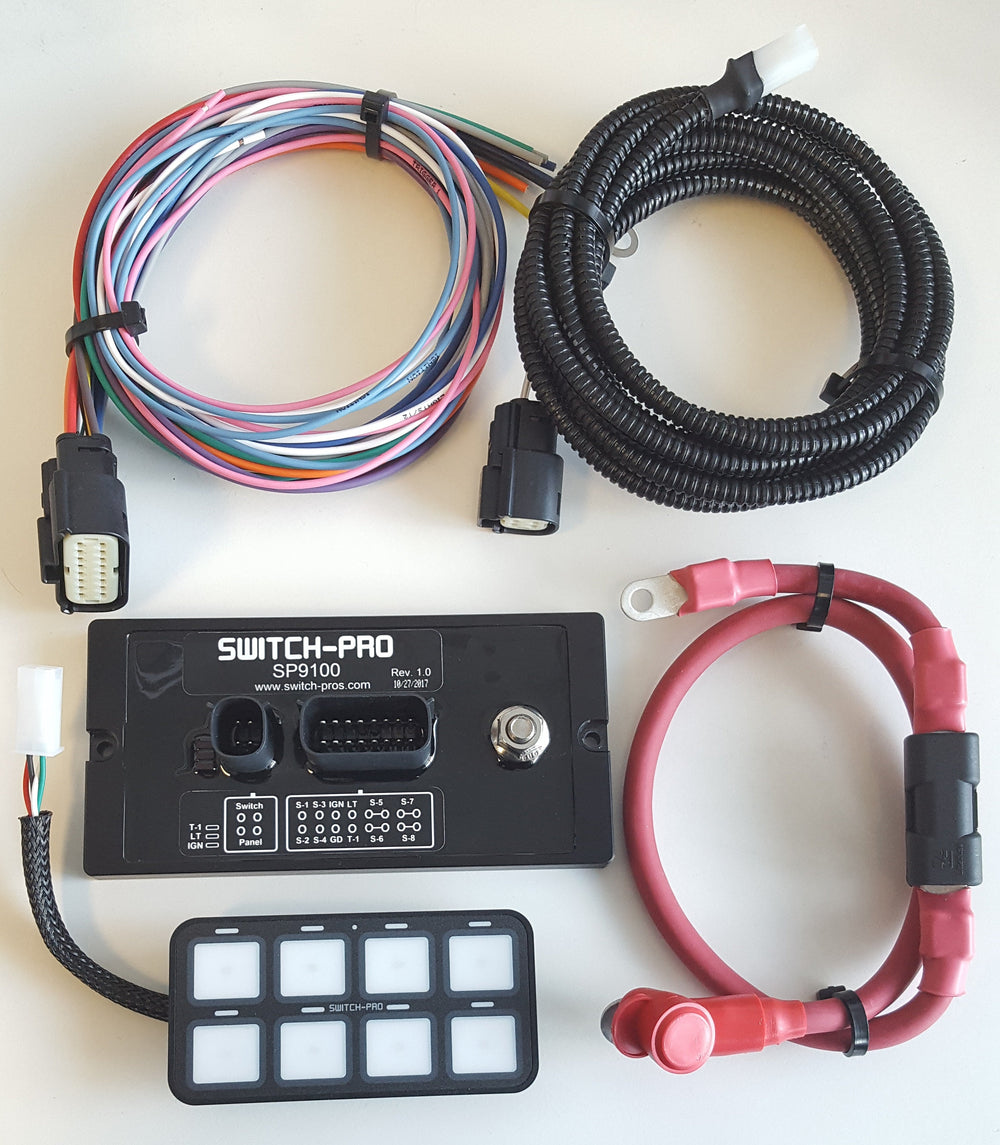

SP9100 8-Switch Panel Power System

The Switch-Pros SP9100 is an 8-switch panel power system designed to streamline accessory control for vehicles. This system offers robust features including customizable RGB backlighting for user preference and a built-in Bluetooth module that enables full control and programming via the free Switch-Pros App. Users can monitor battery voltage directly on the app, and the panel features distinct orange LED indicators for each switch and LED Input Status Indicators on the power module for easy troubleshooting. The system is designed for durability, featuring an IP67 waterproof rating for both the switch panel and power module, and the power module itself is rated for operation between 125°C and -40°C, making it suitable for under-hood installations. With a total 125-amp capacity, the SP9100 provides eight outputs: four rated at 35A and four at 20A. It includes adjustable output overcurrent values for protection. The system also offers advanced programming features such as preset dimming with memory, a Master Mode to control up to seven other switches simultaneously, and options for on/off or momentary operation. Users can choose between ignition or battery input, and custom flash or strobe patterns with one-touch activation are available. Additional functionalities include automatic power-up upon vehicle start, time delay off, and low voltage disconnect. Installation is simplified with a compact design that eliminates bulky relay boxes. The package includes the switch panel, power module, an 11-foot communication cable, a 125A inline fuse power cable, 125 user-selectable legends, installation brackets and hardware, and a 16-pin color-coded output harness. The system is proudly made in the USA.
