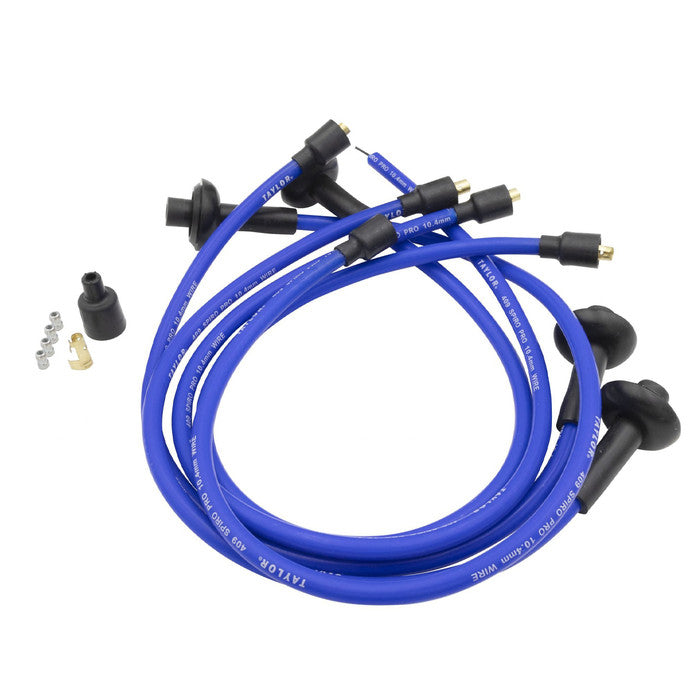

Spiro Pro 10.4mm Spark Plug Wire Set

The Taylor 409 Spiro Pro 10.4mm Spark Plug Wires are engineered as a heavy-duty solution for air-cooled Volkswagen Type 1 engines, particularly for high-performance applications. These wires go beyond standard replacements, featuring a substantial 10.4mm diameter that provides crucial insulation and RFI suppression for modern electronic ignition systems, high-output coils, and high-compression builds. They ensure that maximum spark energy is delivered to the plugs without loss due to thin insulation or high resistance. The construction of the Taylor 409 series involves a three-layer design. It starts with an 8mm silicone wire core for energy transfer, followed by a high-strength woven fiberglass over-braid for structural integrity and heat resistance. The outer layer is a thick 10.4mm silicone jacket, offering protection against temperatures up to 600 degrees Fahrenheit, which is vital in the hot environment of a Type 1 VW engine. This construction helps eliminate cross-fire and voltage leaks, leading to faster starts, smoother idling, and improved throttle response. Fitment is specifically for Volkswagen Type 1 based engines with standard upright cooling shrouds, including VW Beetles (1946-1979), Karmann Ghias (1956-1974), VW Things (1973-1974), and VW Buses/Transporters (1950-1971) equipped with Type 1 engines. Custom applications like Dune Buggies, Sand Rails, Trikes, and Kit Cars utilizing a VW Type 1 engine are also compatible. However, these plug wires are not compatible with 1972-1979 Type 2s equipped with the Type 4 1700/1800/2000cc engine. It is recommended to use specialized 10mm-11mm plastic wire separators or combs for proper organization and to prevent rubbing against engine tin. For optimal performance, pairing these wires with a high-output coil, such as those from Pertronix or MSD, is advised to fully utilize their insulation and low-resistance capabilities.
