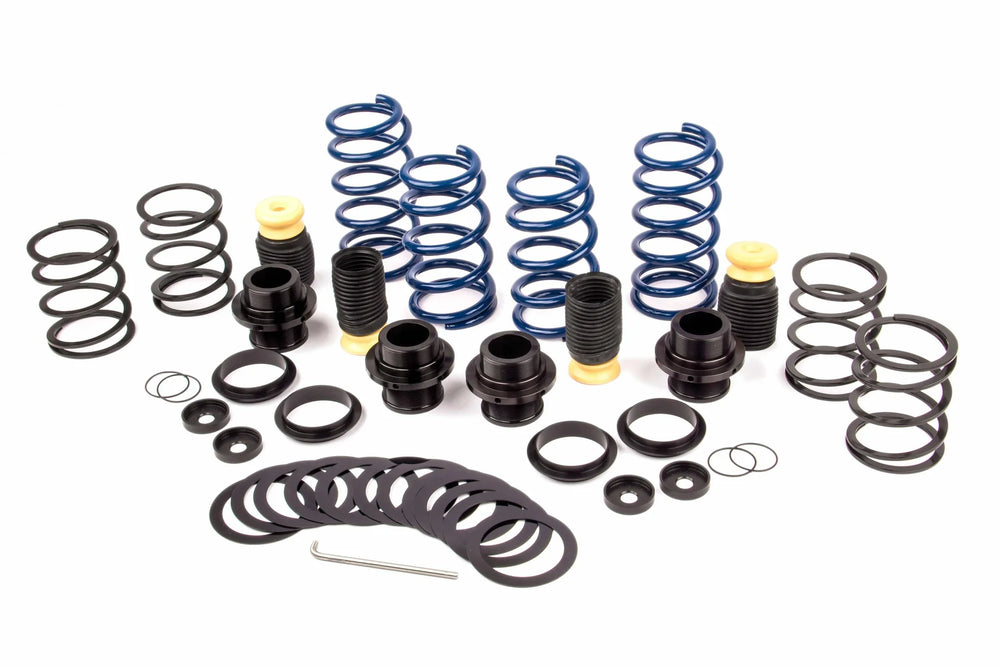

ST-1 COIL-OVER SUSPENSION F90

Part #: D190-0901

For the driver that demands the best out of their vehicle. The Dinan Adjustable Coil-Over Suspension was bred in the race lab but refined on the street for maximum versatility. No matter the environment, the traction that is bestowed upon the vehicle from the improved suspension will inspire new found confidence when running at higher speeds. From the substantial reduction in body roll as well as reduction of dive under braking and squat under acceleration, Dinan guarantees you superior handling, performance, and comfort.

Features:

• Threaded collars allow easy and precise front & rear vehicle height adjustments.
• Up to 2" of lowering in front and 2-1/8" of lowering in back are possible depending on tire clearance but with diminished ride quality. Dinan recommends a 1" drop in front and a 1-1/8" drop in the rear to maintain a civilized ride.
• Spring rates are 20% stiffer in front and 15% stiffer in the rear. Stock rear springs are progressive whereas the Dinan springs are linear.
• Helper springs are utilized in the front and rear to maintain proper suspension operation under droop conditions as well as accommodate the extensive travel of the stock shocks.
• Substantial reduction in body roll.
• Included suspension packers allow adjustment of bump-stop clearance to fine-tunehandling and comfort.
• Dinan-spec progressive bump stops improve ride quality at lowered ride heights.
• Components are machined from 6061-T6 aluminum and black anodized for a sportyappearance as well as corrosion protection.
• Stock upper spring mounts are utilized for quiet operation.

F90
