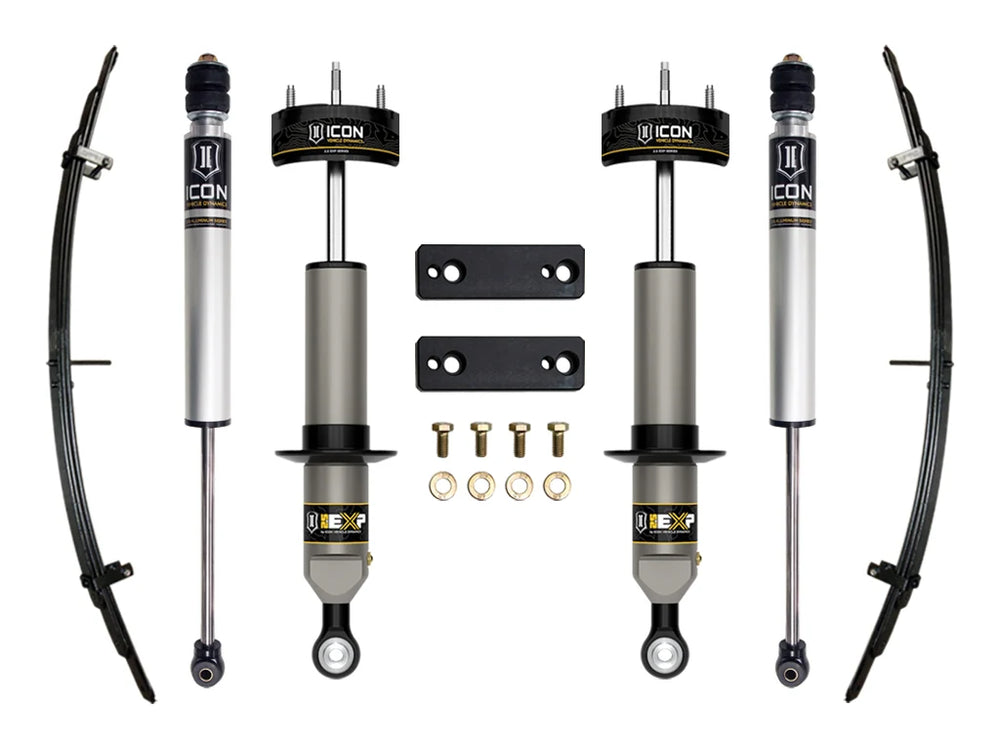

Stage 2 EXP Suspension System

The ICON Vehicle Dynamics Stage 2 EXP suspension system is engineered to enhance the on- and off-road capabilities of 2005-2023 Toyota Tacoma 4WD models. This kit includes ICON's 2.5 EXP Series front coilover shocks, which utilize the factory coil spring and hardware for a balance of performance and cost-effectiveness, offering 0-2 inches of adjustable front lift. The system also features sway bar relocation brackets to improve suspension travel and clearance, and a rear 3-leaf Add-a-Leaf kit that softens the rear spring rate for better ride quality while providing a 1.5-inch rear lift. Complementing the front coilovers are ICON's 2.0 Aluminum Series rear shocks, designed to provide balanced vehicle control and improved performance. All ICON shock absorbers included in this kit are fully rebuildable and re-tunable. This system is designed to fit the 2005-2023 Toyota Tacoma 4WD. However, it is explicitly not compatible with TRD Pro models. Additionally, it is not compatible with 2005-2015 rear-wheel-drive Tacomas with 5-lug studs. The recommended aftermarket tire size is 33" x 11.50", which may require minor fender trimming. The indicated lift heights are for stock-equipped vehicles.
