Stage 4 Suspension System with Adjustable Coilovers and

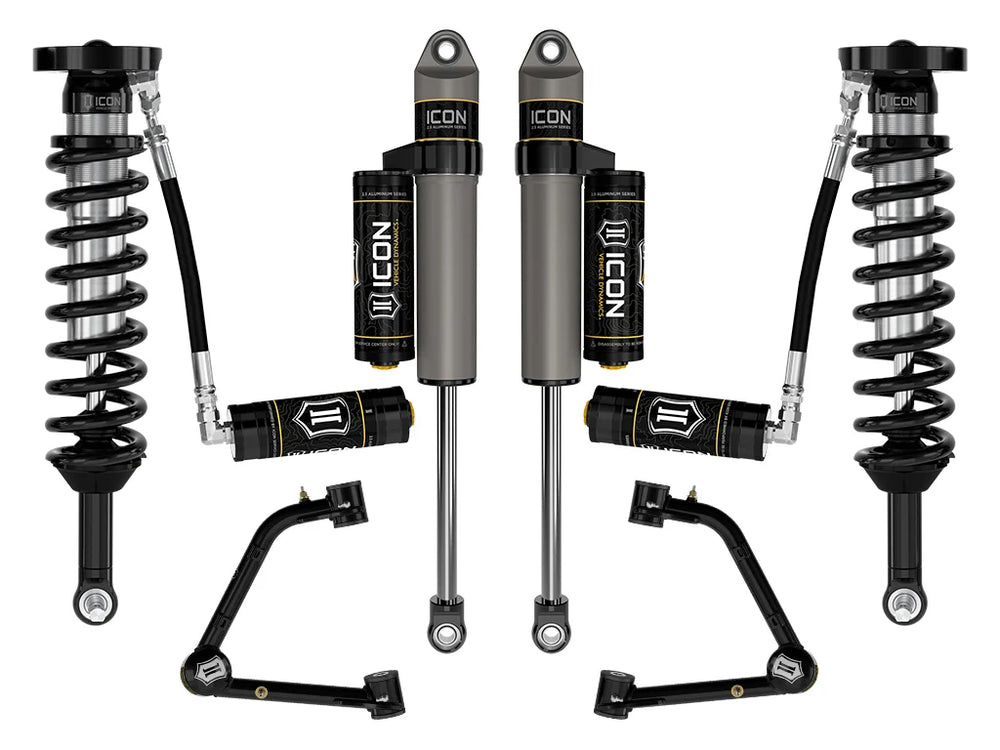

The ICON Vehicle Dynamics K73084T Stage 4 Suspension System is engineered to enhance the performance of 2023-2026 GMC Canyon AT4, Denali, & Elevation and 2023-2024 Chevrolet Colorado Trail Boss models, offering a significant upgrade for both on- and off-road driving. The system's primary goal is to increase wheel travel by 20% over stock, reaching a total of 10.25 inches from full compression to extension, while simultaneously improving damping capabilities for superior vehicle control and ride comfort. The front suspension is equipped with 2.5-inch extended travel coilovers featuring remote reservoirs for enhanced cooling and adjustable height settings ranging from 1.75 to 2.5 inches of front lift. Key components include vehicle-specific tuned 2.5 Aluminum Series piggyback reservoir rear shocks that balance the front suspension's performance and provide increased damping and heat dissipation. The system also incorporates tubular upper control arms that utilize ICON's patented Delta Joint PRO. This innovative joint offers extended range of motion (90 degrees of articulation) for maximum suspension movement, combines the durability of factory ball joints with the strength of motorsports-style joints, and features a rebuildable, serviceable design. Constructed from 6061 aircraft-grade aluminum and featuring CAD-plated shock bodies with 7/8-inch shafts, these components are built for strength and longevity. The system is a 100% bolt-on installation, requiring no drilling, cutting, or welding. It is not compatible with Chevrolet Colorado WT, LT, Z71, or ZR2 models, nor the GMC Canyon AT4X. Furthermore, it will only fit with OE steering knuckles and should not be installed with any aftermarket steering knuckles. Rear shock compatibility is limited to 0-1 inch of rear lift over stock. After installation, recalibration of Advanced Driver Assistance Systems (ADAS) is required.
