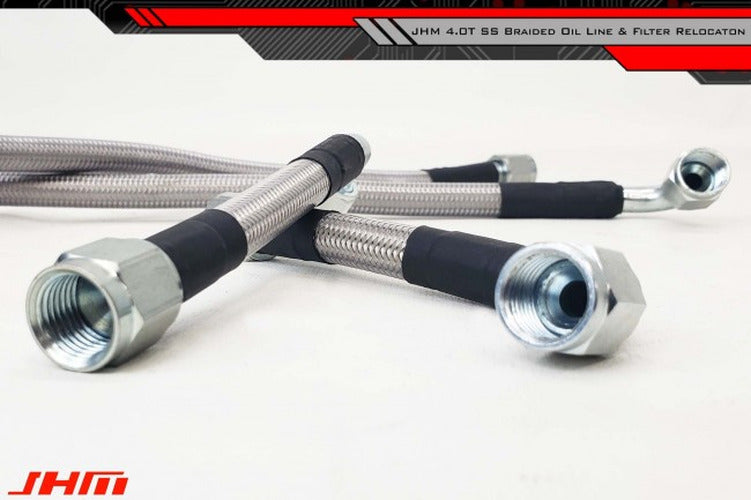

Stainless Braided Turbo Oil Line and Strainer Relocation Kit

The JHM 4.0T Stainless Braided Turbo Oil Line and Strainer/Screen Relocation Kit provides a solution to the common issue of clogged OEM oil strainers, which can starve turbos of oil and cause costly failures, as highlighted in TSB-2044640. This kit bypasses the factory strainer, replacing it with two easily accessible, serviceable oil screen filters relocated to the top of the engine. This design significantly simplifies maintenance, as the original strainer replacement requires extensive disassembly, including putting the vehicle in service position and removing components like throttle bodies and intercoolers. With the JHM kit, servicing the filters becomes a straightforward task, performed only once to save significant labor costs over time. The PTFE hoses have a stainless steel wire braided cover with a clear PVC outer cover for added protection against abrasion and corrosion. The strainers are factory-matched in micron rating, utilizing 30-micron filters. Installation is a 100% bolt-in process with no cutting or modifications required for your vehicle. The kit is compatible with both factory and upgraded turbos that retain the use of the OEM oil feed lines. The product fits the following Audi models with the 4.0t V8 engine: RS7 (C7-C7.5, 2014-2018), S6 (C7-C7.5, 2013-2018), S7 (C7-C7.5, 2013-2018), S8 (D4-D4.5, 2013-2017), and A8 (D4-D4.5, 2011-2017). This product is intended for off-road use only and may not comply with Federal or State emissions standards. The purchaser acknowledges and agrees to use the vehicle only for racing applications or off-road use and indemnifies JH Motorsports for any liability arising from use on public streets or highways.
