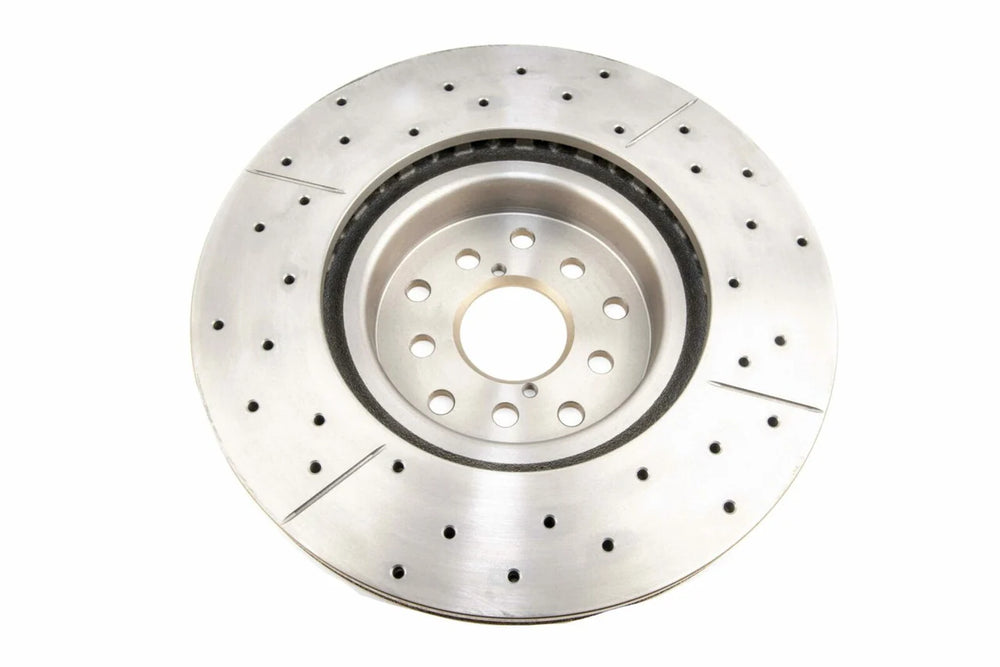

Street Series XGold Front Brake Rotor

As a direct replacement, it integrates seamlessly into your vehicle's braking system while offering enhanced capabilities. The rotor features a distinctive cross-drilled and slotted surface design, meticulously crafted to increase the number of exit points for friction dust and gases. This allows for more efficient expulsion of heat and debris, leading to a more responsive and consistent pedal feel, especially under demanding conditions. Constructed from high-carbon alloyed iron and treated with Thermal Stability Profiling (TSP), these rotors are built to withstand the increased stress and heat generated during intense braking applications. The XGold variant includes an attractive gold finish on the rotor hub and utilizes DBA's unique Kangaroo Paw (KP) ventilation system. Additional features include anti-rust painted non-friction areas or En-shield coating, bidirectional use due to symmetrical slotting/drilling, and a CBN machine-turned finish to minimize disc thickness variation and prevent premature pad wear. This specific rotor (DBA2650X-10) is designed for the front axle and has a diameter of 316mm. Its specifications include a height of 56.7mm, a brake disc thickness of 30mm (with a minimum discard thickness of 28mm), and a centering diameter of 58mm. It features 10 lug holes with a pitch circle diameter of 100mm and 114.3mm. The Street Series XGold is a popular choice for both daily drivers and show cars due to its performance benefits and aesthetic appeal.
