T-56 Magnum Reverse Lock -Out Module

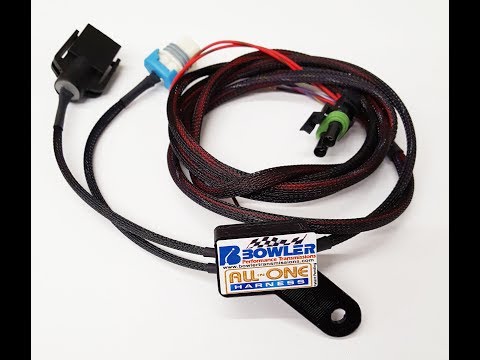

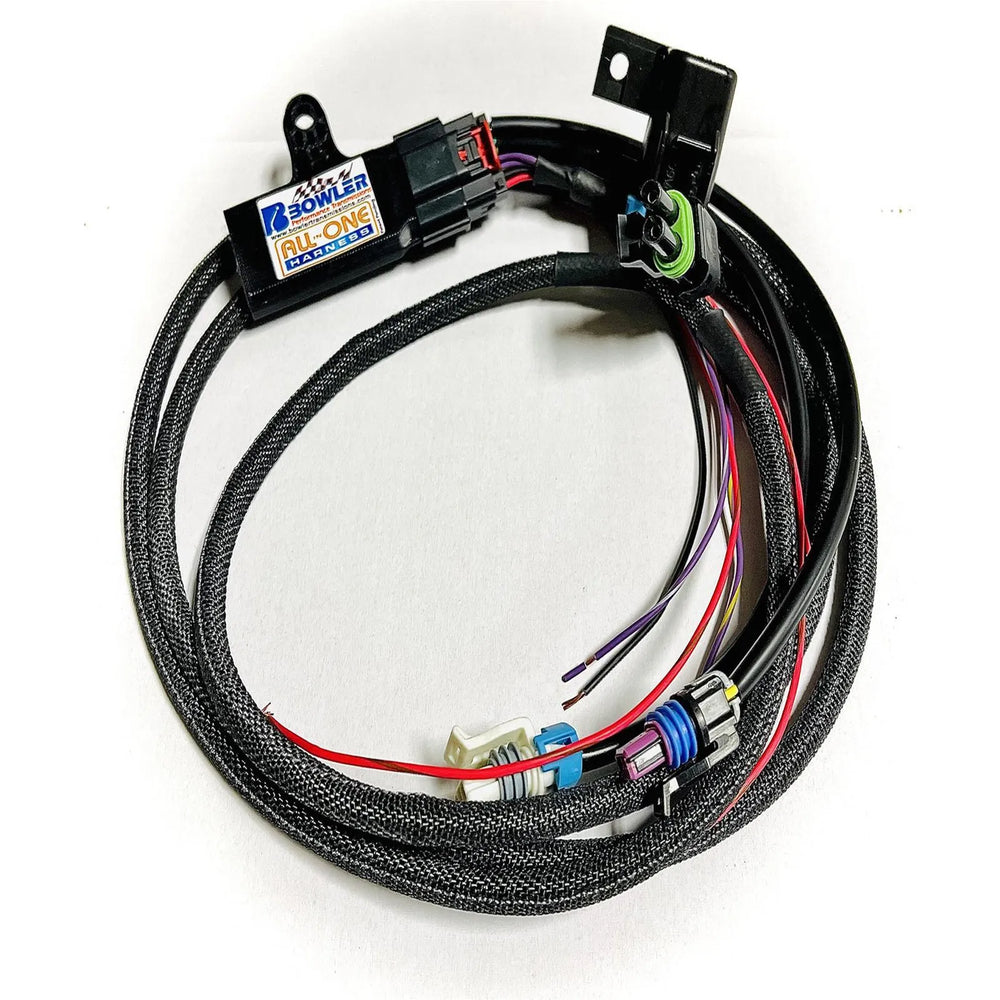

The Bowler Performance All-in-One transmission wiring harness for Tremec T-56 Magnum transmissions simplifies installation by pre-wiring all connections into a single harness. It features a small, epoxy-sealed controller that mounts to the VSS output and connects via Bluetooth to a free Apple or Android smartphone app. This app allows customization of input and output settings for various features. The harness eliminates the need for additional equipment to operate the reverse lockout or generate correct speedometer signals from the Tremec T-56 Magnum. It includes wiring for reverse lights, reverse lock-out, and vehicle speed sensor, with two independent speed sensor outputs that can be calibrated separately for different pulse counts and ratios, making it compatible with various speedometers, cruise control systems, or ECMs. The reverse lockout control is based on a user-defined speed setting (default: locked above 4 MPH, unlocked at 0-3 MPH), providing better control than a simple on/off switch. This harness is designed for Standard T-56 Magnum, Magnum XL, & Mustang GT500 TR6060 transmissions.
