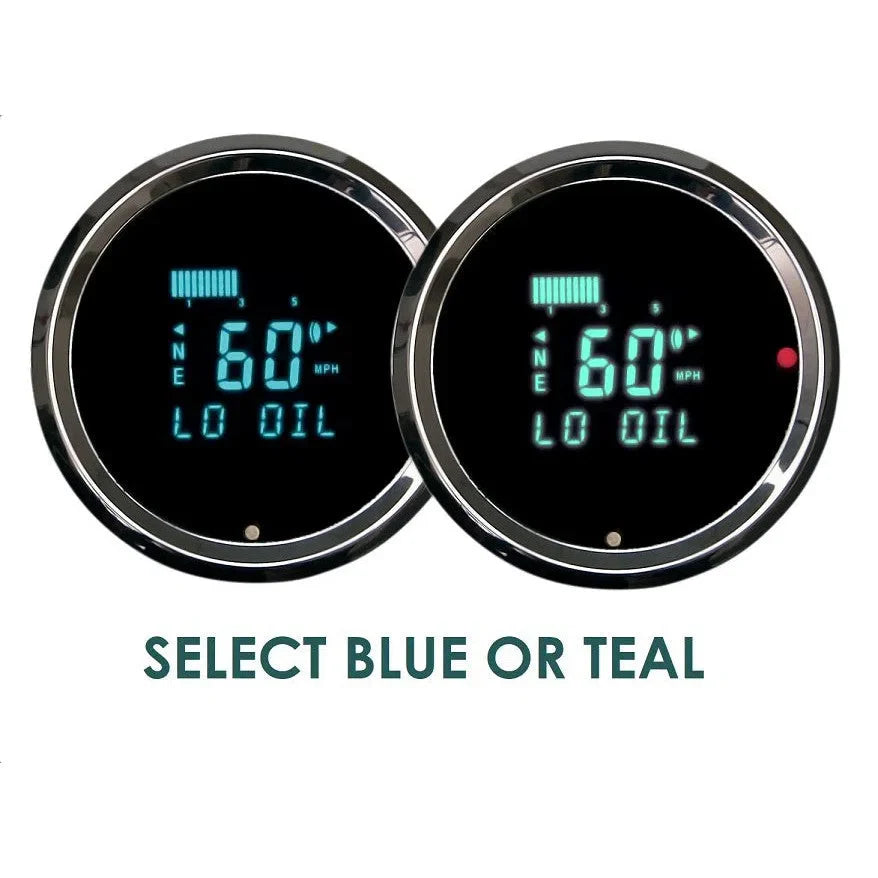

T Instrument Cluster System

The Dakota Digital Series III instrument system offers advanced technology for custom 1962-1965 Nova builds. Its high-brightness vacuum fluorescent displays provide a lifetime of reliable use with increased accuracy and features. This comprehensive kit includes digital readouts for Speedometer (0-255 MPH or KPH), Tachometer (0-17,500 RPM), Oil Pressure (0-99 psi), Water Temperature (0-300ºF), Fuel Level (0-99%), and Voltmeter (8-17 VDC). It also displays Odometer, Trip Odometer, a resettable Service Odometer, and an Hourmeter. The system comes with necessary sensors for oil pressure (1/8" NPT) and water temperature (1/8" NPT with various bushings), as well as a speedometer pulse generator for GM-style cables. Included bushings adapt to various thread sizes, including metric. Advanced features include performance calculations like a 0-60 MPH timer, 1/4 mile timer and speed, high speed recall, and high RPM recall. Various indicators can also be displayed, such as Turn Signals, High Beam, Check Engine, Parking Brake, Cruise Control, 4x4, and Wait to Start (when equipped). An automatic transmission gear indicator is also included, requiring a Dakota Digital GSS-1962-1965 sending unit. A demonstration mode cycles the readouts for display purposes. The speedometer is fully programmable for different tire sizes and gearing. A built-in dimmer adjusts display intensity with headlight activation, and adjustable warning points alert the user to potential issues. The odometer is user-settable once within the first 100 miles of operation. Part Note: Bezel is not included and is shown for visual purposes only. Gauge conversions are special order and may require 8-10 weeks to build.
