T25/T28 Water and Oil-Cooled Turbocharger with Internal

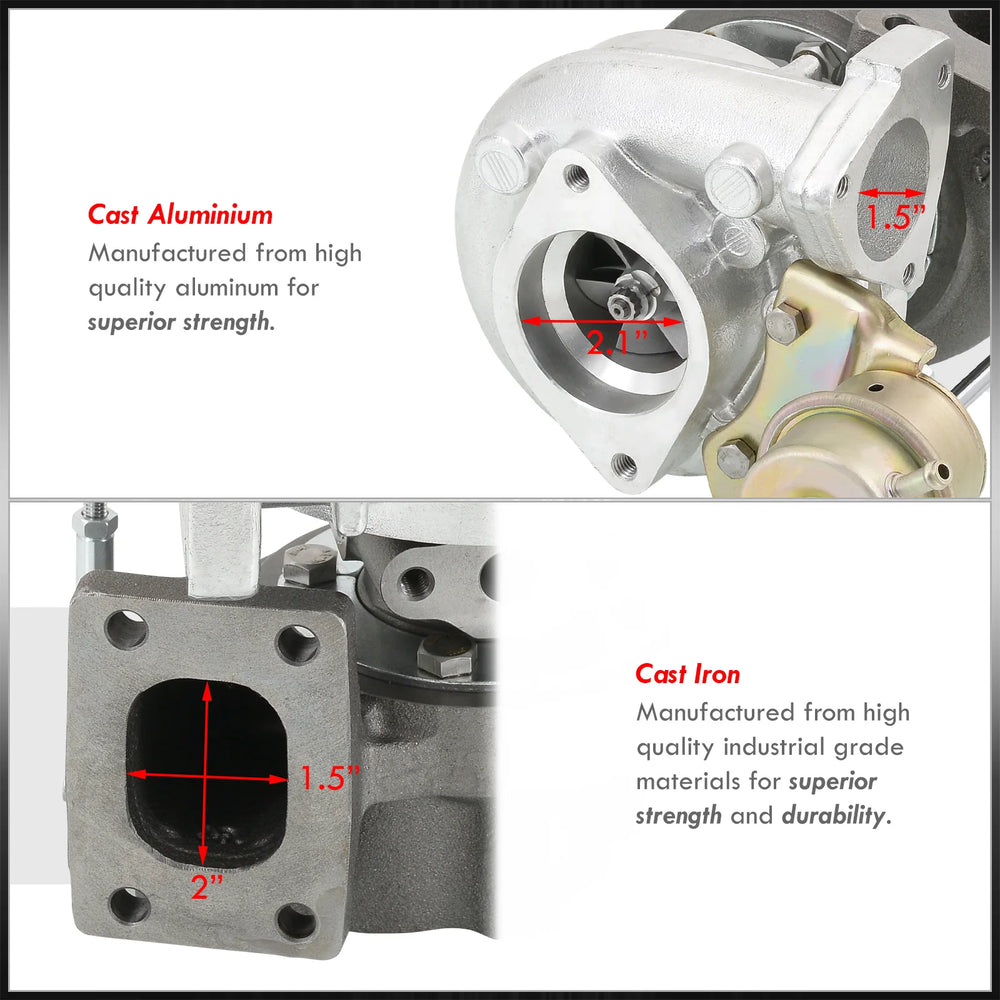

The Revolution TBC-EB-032 is a brand new, never-used T25/T28 hybrid turbocharger designed for performance applications. This water and oil-cooled unit features an internal wastegate pre-set to approximately 0.6 BAR / ~8 PSI, with the option for modification to an external wastegate setup. Key specifications include a T25 4-bolt exhaust manifold flange and a T25 5-bolt downpipe exhaust flange. The compressor has a 0.60 A/R with an inducer measuring 1.685" (42.81mm) and an exducer of 2.362" (60.00mm), while the turbine features a 0.86 A/R with an inducer of 2.090" (53.10mm) and an exducer of 1.820" (46.25mm). The intake has a 2.1" (53.3mm) inlet and a 1.5" (38.1mm) outlet. This turbocharger is intended for universal application and is not a direct bolt-on; additional modifications and/or items are required for installation. Hardware such as gaskets, bolts, and nuts are not included. No installation guides are provided, and professional installation is highly recommended. It is designed to fit most aftermarket and OEM T25 flange manifolds.
