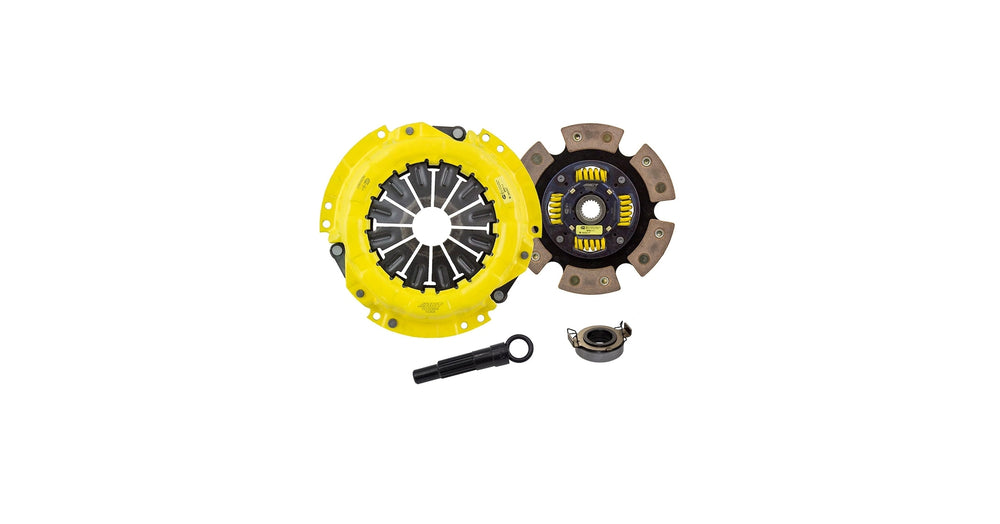

TC2-XTG6 Xtreme Clutch Kit

The ACT TC2-XTG6 is an Xtreme Race Sprung 6 Pad Clutch Kit designed for demanding driving applications. This kit features an ACT Xtreme pressure plate, engineered with an exclusive diaphragm design that enhances clamp load, reduces deflection, and maximizes clutch life. Each diaphragm is subjected to a rigorous four-stage heat-treating process to ensure unparalleled performance under stress. Central to this kit is the 6-pad spring-centered race disc. Its unique construction is built to effectively damp torsional vibrations, crucial for resisting failure in harsh operating conditions. ACT's proprietary spring retainers incorporate wraparound spring windows and reinforced stampings, which provide superior spring support, mitigate stress concentrations, and ultimately increase the overall strength and reliability of the clutch assembly. While the 6-pad spring-centered disc provides a harsher engagement, it facilitates faster shifting, making it an ideal choice for performance-oriented vehicles. This disc is also recommended for larger clutch sizes due to its enhanced heat absorption capabilities. The TC2-XTG6 kit includes the clutch friction disc, a clutch alignment tool, a clutch release bearing, and the clutch pressure plate. Key specifications include a torque capacity of 400 ft-lbs, a 1.22 torque capacity over OE, an 8.3-inch clutch disc diameter, ceramic disc material, and 21 input spline quantity. This clutch kit is compatible with a range of vehicles including the 2003-2008 Pontiac Vibe, 1991-1997 Geo Prizm, 1991-2005 Toyota Celica, 1992-2013 Toyota Corolla, 2000-2005 Toyota MR2 Spyder, and 2003-2014 Toyota Matrix.
