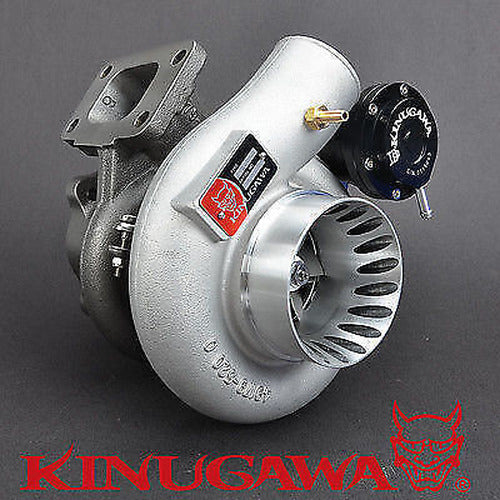

TD05H-18G Anti Surge Turbocharger, 3-Inch Inlet, 8cm T3 Housing

The Kinugawa 3" TD05H-18G Anti Surge turbocharger is a universal fitment component designed for engines between 2000cc and 3000cc. It boasts an 18G compressor wheel with dimensions of 50.3mm / 68mm and a TD05H turbine wheel measuring 49.2mm / 56mm. This turbo features an anti-surge compressor cover with a 60 A/R and a 3" inlet/2" outlet. The turbine housing is an 8cm T3 flange with an internal wastegate and a 57 A/R. For durability and performance, it employs a journal bearing system paired with a Kamak Performance Thrust Bearing Kit and requires both oil and water cooling. The Kinugawa turbocharger is capable of producing 300-450 horsepower, with a maximum boost limit of 2.8 Bar when utilizing the performance bearing kit. A suggested limit of 1.5 bar / 22 Psi is also provided for optimal operation. The kit includes everything shown in the product images, with various bar actuators available for purchase separately. Buyers should be aware that they assume all risks associated with shipment and usage. Professional installation is highly recommended for this component.
