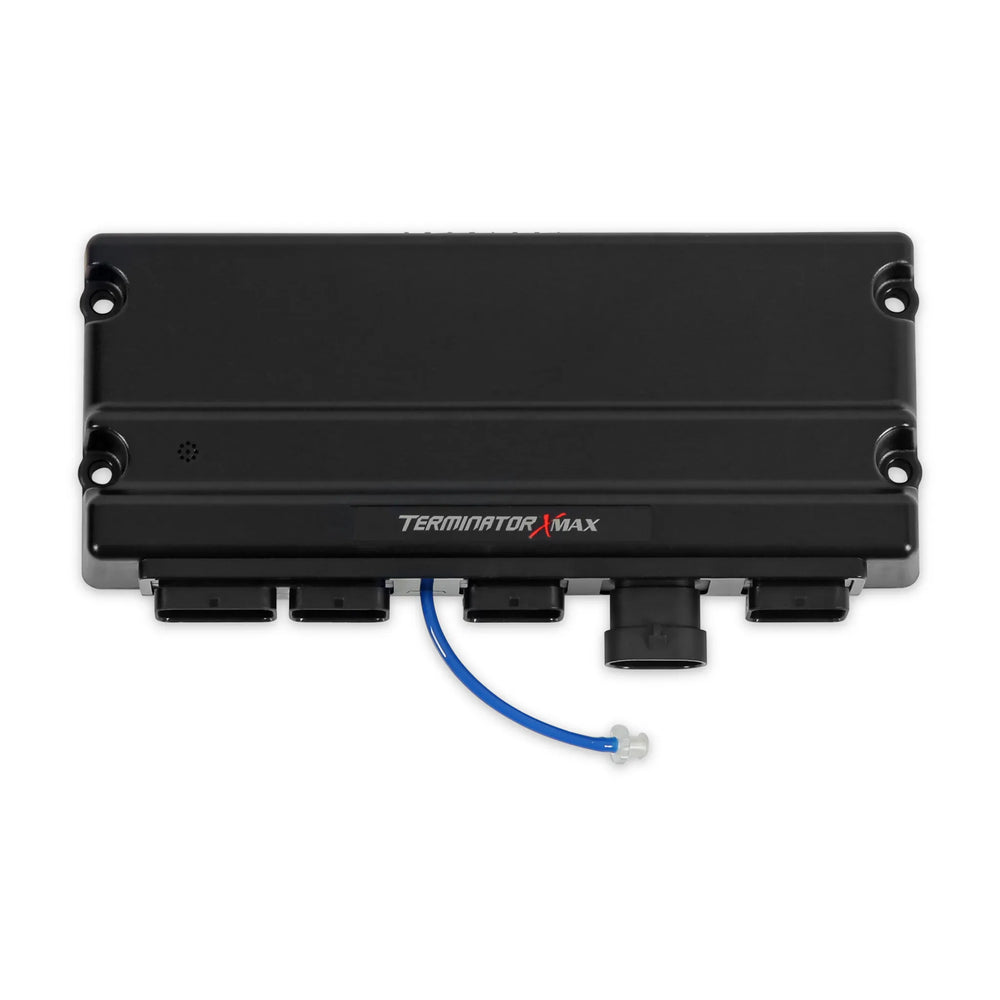

Terminator X Max MPFI w/6L80 Control

Part #: 550-917-6

Take control of your LS engine and 6L80 transmission with our Terminator X Max bundle kits! Best of all, you can save up to $90 by purchasing our kits versus the separate components. Part numbers 550-917-6, 550-918-6 and 550-928-6 add GM 6L80 and 6L90 control to the ever growing lineup of high performance Terminator X Products.

Features:

• Included TCM handheld tuner with integrated wizard is required for setup in conjunction with the Terminator X 3.5-inch Handheld. Terminator X V3 software to unlock optional tuning parameters.
• Supports - Shift Mode - Tap Up / Tap Down, and Torque Management
• Four loose wires:
• o Power (Red) - Supplies power to the transmission solenoids. This should be connected directly to the battery, or a constant battery source capable of supplying 5 amps
• o Ground (Black) - Connect to a good chassis/engine ground source
• o Brake Switch (Light Blue/White) - Wired to the brake light switch. This must be installed to a +12v source (as most brake light switches are)
• o Park/Neutral Safety (Yellow) - Circuit for starter solenoid. When the transmission is in Park or Neutral this Yellow Wire will be Grounded (-). When the transmission is in gear this circuit will be open.
• 550-917-6 For GM LS 4.8/5.3/6.0 Truck Engines with 24x crank reluctor, 6L80/90e Transmission Control, and Multec 2 Injectors
• Real-Time fuel map learn, takes the guess work out of tuning your base fuel table
• High Impedance Injector Drivers will safely power most Stock LS injectors, and Holley EFI Injectors. Injector support chart provided in the instructions (Will not control Low Impedance Injectors)
• All of the new Terminator X Max systems utilize the Bosch LSU 4.9 wideband to relay AFR information to the ECU for accurate reading and precise tuning control.
• On-Board 1bar MAP sensor, is perfect for N/A or Nitrous engine combos. If your combination requires a 2+Bar, we recommend GM 12592525, and our adapter part number 558-416.
• MAP Sensor vacuum hose adapters (1/8th - ┬╝ and 3/16ths)
• 4 Inputs - 12v, Ground, 5v, and Frequency, for things such as additional pressure sensors, or activation triggers for nitrous activation, or a trans brake
• 4 Outputs - Ground, PWM - , for accessories such as; fans, boost control, nitrous control, IAC Kit, and More
• Boost Control - Boost vs Time, Boost vs Gear, Boost vs RPM, Boost vs Speed, Boost Safeties
• Nitrous Control - Single Channel of Wet or Dry, Progressive or Non-Progressive, Rich/Lean Safeties, and target Closed Loop AFR
• Advanced Tables - 4x 1D Tables, 1x 1D per Gear Table, 4x 2D Tables, 1x 2D per Gear Table, can be used for any custom tables you can dream up, such as Flex Fuel Sensor Offset Table, or a custom fuel or oil pressure safety!
• On-Board Diagnostic LEDS for: ECU Power - Engine Run - Wideband Status - TPS Calibration - Crank Signal -Cam Signal. Allow you to identify any Critical engine issues at a glance
• The included 3.5-inch Touchscreen Handheld contains a calibration wizard, that allows you to quickly build a base tune for any LS engine. Additionally, the handheld provides internal data-logging and a fully customizable gauge display.
• The compact ECU size allows you to mount it virtually anywhere. Remember, diagnostic LEDS must face up!
• Plug and play compatible with more Holley EFI accessories such as; analog style gauges, shift lights, various modules, as well as 5, 6.86 and 12.3-inch Digital Dashes
• Free EFI Tuning Software for complete control of your Terminator X power plant
• Recommended Pedal part number - 10379038

24x Crank - 1x Cam - Multec 2 Injectors - 6L80/90 Transmission Control - 3.5-inch Touchscreen
