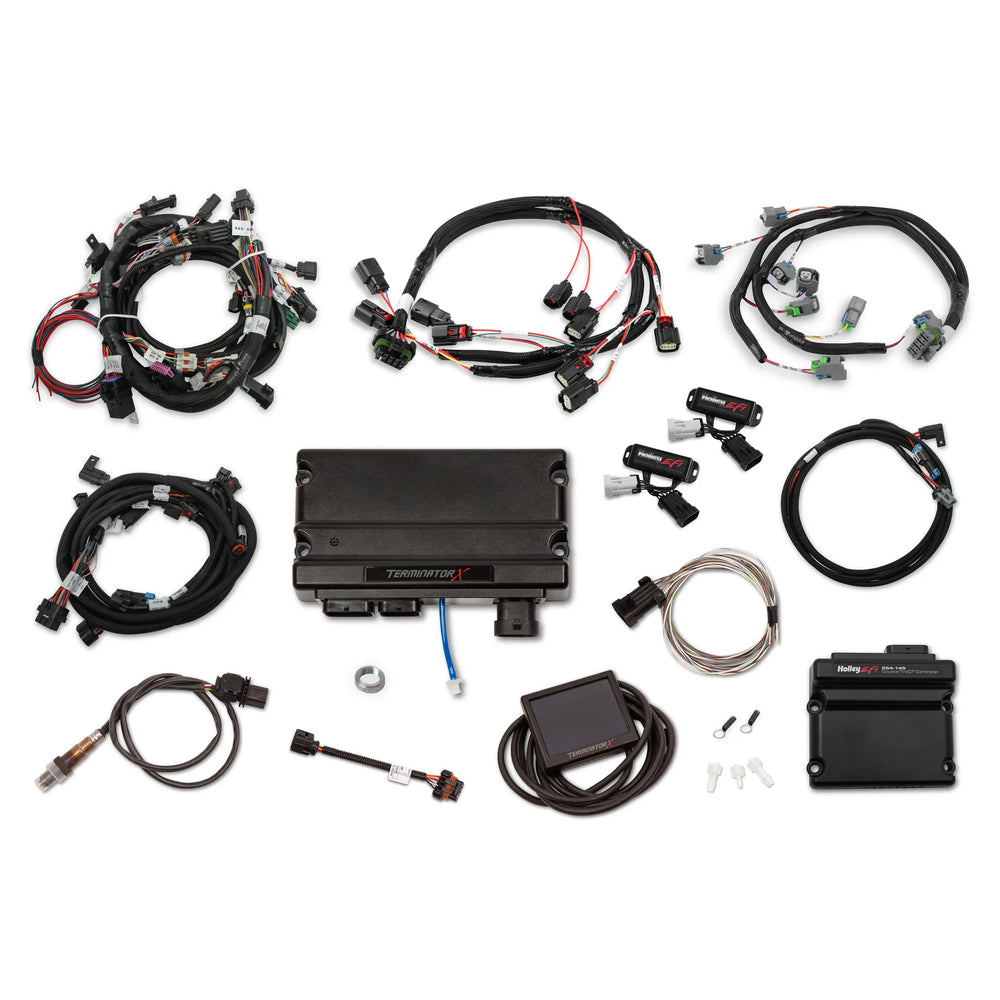

TERMINATOR X MPFI, 13-15 COYOTE VCT EV6

Part #: 550-1213

Terminator X and X Max Coyote systems supports Ford Coyote platform with Ti-VCT.

Features:

• Plug and play engine control (for Ford 5.0L Coyote with Ti-VCT (Twin Independent Variable Camshaft timing)
• Plug and Play compatible with Holley EFI accessories - Analog gauges, shift lights, modules, and both 6.86" and 12.3" Pro Dash
• EV1 or EV6 injector harness included (depending on your injector configuration)
• High Impedance Injector drivers power Holley EFI and most stock injectors -Injector support chart found in instructions (will not support low impedance injectors)
• Included Bosch LSU 4.9 wideband O2 sensors for accurate readings and precise tuning control
• Built in 1bar MAP (manifold absolute pressure) sensor included - For Boosted applications - internal MAP sensor can be disabled and utilize external MAP sensor harness (kit includes a terminated connector for seamless installation)
• Vacuum hose adapters included - (1/8", ┬╝", and 3/16" sizes)
• 4 inputs - 12v, Ground, 5v, and frequency for items like pressure sensors, activation triggers, nitrous activation, or trans brake
• Boost Control - boost vs. time, boost vs. gear, boost vs. RPM, boost vs. speed, and boost safeties
• Nitrous Control - channels for wet or dry, progressive or non-progressive, rich/lean safeties, and target closed loop AFR (Air/Fuel Ratio)
• Advanced Tables - ( 4x 1D tables, 1x 1D gear table, 4x 2D table, and 1x 2D gear tables) for nearly unlimited table configuration options
• On-board diagnostic LEDS - ECU power, engine run, TPS calibration, cam signal, and more! Identify critical engine parameters at a glance
• 3.5" touchscreen handheld included - Internal data-logging, custom gauge display, and calibration wizard allow quick building bases tunes for any Domestic V8 engine
• Compact ECU (Engine Control Unit) - At only 7.45" x 4.1" x 1.66" the compact packaging allows mounting virtually anywhere (XMAX ECU = 9.6" x 4.1" x 1.66"). REMINDER: diagnostic LED's must face up!
• FREE EFI Tuning software - For compete control of your Terminator X power plant

2013-2015 Ford Coyote Engines with Ti-VCT and EV6 injectors, for Early Coils
