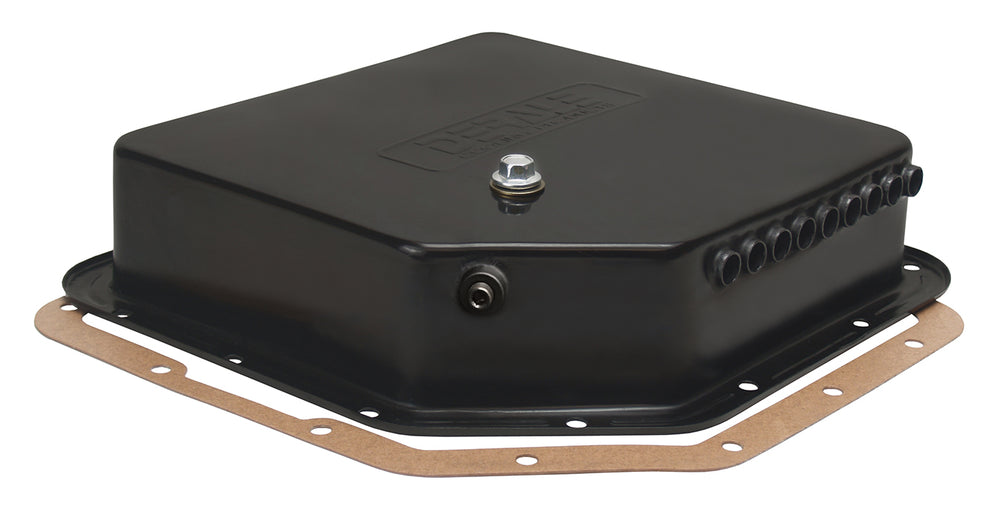

TH-350 Transmission Cooling Pan

The Derale Performance GM TH-350 Transmission Cooling Pan, part number 14200, is engineered to enhance the longevity and performance of your transmission by significantly reducing oil temperatures. It employs a unique design where air passing beneath the vehicle is redirected over patented turbulator cooling tubes integrated into the pan's lower section. This process facilitates more efficient heat dissipation, potentially lowering fluid temperatures by up to 50°F. Constructed from heavy gauge stamped steel, this transmission pan boasts a robust build and is finished with a durable, two-stage heat-dissipating black coating. Beyond its cooling capabilities, the pan increases fluid capacity by 2 quarts, providing a greater buffer against overheating. It also comes equipped with a stronger magnetic drain plug, featuring a rubber/steel reusable washer, to help capture metallic debris. For enhanced monitoring, a 1/8" NPT temperature sender bung is conveniently located on the side of the pan, and a plug is included. The package includes a neoprene gasket for a secure seal. The dimensions of the pan are 13 1/2" in length, 13" in width, and 3-3/8" in height, with the drain plug adding an additional 1/4" to the overall height. The tube depth is 2-3/8".
